Broan 744 Exhaust Bath Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

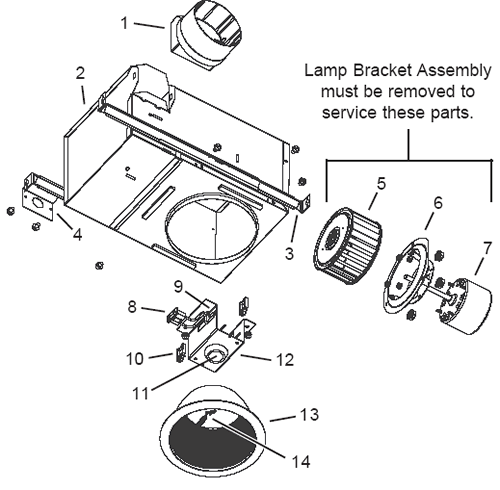

Broan 744 Exhaust Bath Fan Parts breakout large

Part Key	Part Number	Description	Unit Price
*	744	Complete New Unit	$157.38
	75PAR30	75 watt 744 bulb	$12.50
	S1102428	LAMP SOCKET ASSEMBLY - INCLUDES BRACKET & THERMAL PROTECTOR	$51.70
	S97016453	Light Socket/Bracket Assembly * This product has been discontinued
1	S97014185	4" Damper/Duct Connector	$27.26
3	S98003036	Mounting Bracket (4 req.)	$27.26
5	S99524804	Wheel	$16.22
6	S99524805	Motor Mounting Bracket	$6.50
7	S99080557	Motor This product has been discontinued
8	S99271323	Female Receptacle	$27.26
7	S97016454	Motor & Motor Mounting Bracket (1 left then obsoleted)	$71.33
7	S1101122	BLOWER ASSEMBLY - INCLUDES MOTOR, BLOWER WHEEL, & MOUNTING BRACKET	$68.62
9	S99271322	Thermal Protector This product has been discontinued
11	S99770033	Light Socket	$27.26
12	S97016491	Socket Bracket/Holder Only	$10.22
13	S99528893	Round Trim Ring with springs (Was S99524802)	$27.26
14	S99525160	Spring for Trim Ring, 2-Required	$27.26
