Broan 742WH Bathroom Exhaust Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 742WH Bathroom Exhaust Fan/Light Parts

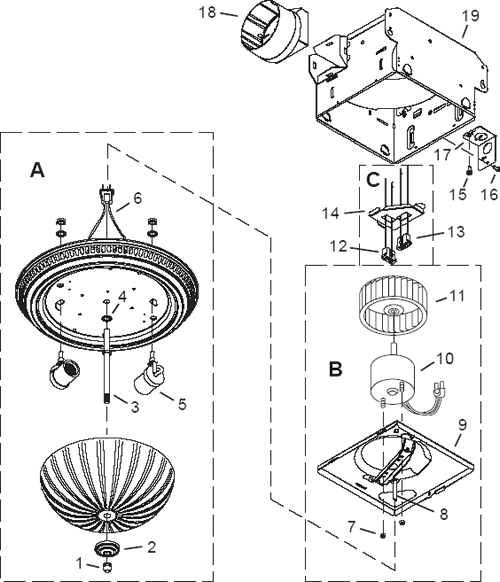

Broan 742WH Bathroom Exhaust Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99524076 Washer $7.74
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
C S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
B S97016381 Complete Motor Assembly (70 cfm) $142.88
1 S97013914 Finial Nut - White $8.60
2 S97013916 Finial Cap/Washer - White $13.50
3 S99523652 Shade Mntg. Rod 741-B (6 3/8" Long) $8.26
5 S97015320 Light Socket (2-Required) $7.56
6 S97015313 Male Plug With Leads For Sockets
This product has been discontinued
8 S99150618 Grille Screw $18.92
9 S97014926 Motor Plate $30.60
10 S99080559 Motor (70 cfm) $100.80
11 S99020276 Plastic Blower Wheel
This product has been discontinued
12 S99270981 Light Receptacle, White $27.26
13 S99270982 Receptacle - Black $18.00
14 S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
15 S99150471 Screw, #10-32 x 1/2" Hex Washer Head $18.00
17 S98008868 Electrical Knockout Wiring Plate $18.00
18 S97014185 4" Damper/Duct Connector $27.26
  S99523638 Mounting Screw 68-20x 3/8 $4.97
