Broan 741WH Decorative Light/Fan

Listed below are the parts available for this model.

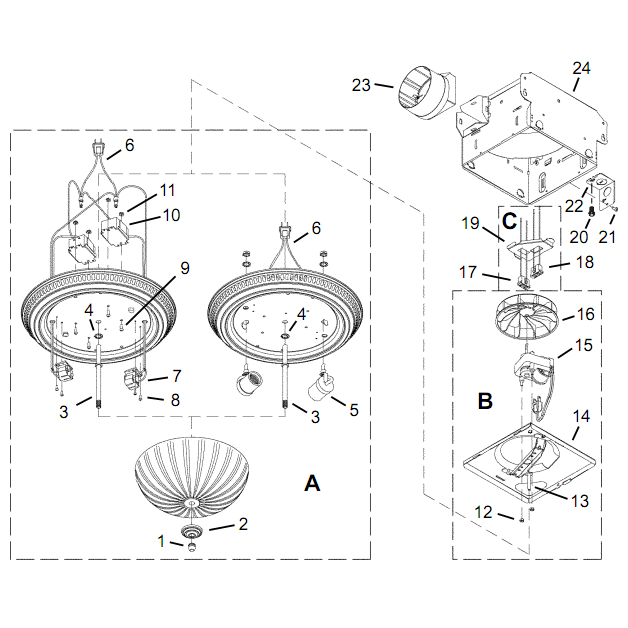

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 741WH Decorative Light/Fan
Broan 741WH Decorative Light/Fan breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
A199523639 Glass Shade $23.71
1A97013913 Finial Nut - Bright Brass $6.97
2A97013915 Finial Cap - Bright Brass $9.38
1B97013914 Finial Nut - White $6.82
2B97013916 Finial Cap/Washer - White $7.76
1C97015574 Finial Nut - Satin Nickel $1.55
2C97015575 Finial Cap/Washer - Satin Nickel $1.55
3A99523652 Shade Mntg. Rod 741-B (6½" Long) $6.17
3B99523628 Shade Mntg. Rod 741-A (5-1/16" Long) $4.97
1699110446 Plastic Blower Wheel 741-A,B, Units $3.53
15A99080166 Motor 741-A Units $31.39
15B99080522 Motor 741-B Units $28.53
B97015312 Motor Assy. 741-B and 741SN-A Units $45.77
 99250428 Motor Nut (2-Required) $0.90
1899270982 Motor Receptacle $1.87
 97015171 Wire Panel Assembly 741-B - Includes Both - Receptacles and Wire Panel $8.69
 97010729 Fluorescent Bulb 13 Watt - 741WHFL, 741WHFLNT $23.89
9A99150618 Grille Pan Mounting Screws 741-B $0.72
9B97013917 Grille Pan Mounting Screws - 741-A - Contains 2 $8.33
17A97014844 Light Receptacle Kit 741BR-A 741BRFL-A, 741BRFLNT-A, 741BRNT-A, 741WH-A, 741WHFL-A, 741WHFLNT-A, 741WHNT-A $9.38
17B99270981 Light Receptacle 741BR-B, 741BRFL-B, 741BRFLNT-B, 741BRNT-B, 741WH-B, 741WHFL-B, 741WHFLNT-B, 741WHNT-B $1.87
17C97015313 Light Wire Harness 2 Prong Plug 741BR-B, 741BRNT-B, 741WH-B, 741WHNT-B $5.65
5A97015320 Light Socket 741-B Units (2-Required) $5.98
 99420470 Grille Nuts, White Plastic 741-A - 2 Required $0.68
A299523699 Complete Grille Pan and Shade Assembly - 741BR-B $77.87
A399523554 Complete Grille Pan and Shade Assembly - w/ 3 Pin Molex Plug 741BR-A, 741BRNT-A $89.78
A499523700 Complete Grille Pan and Shade Assembly 741WH-B $79.87
A599523555 Complete Grille Pan and Shade Assembly w/ 3 Pin Molex Plug 741WH-A, 741WHNT-A $89.78
A699523770 Complete Grille Pan and Shade Assembly 741SN-A,B $79.87
A799523701 Complete Grille Pan and Shade Assembly 741BRFL-B $112.73
A899523580 Complete Grille Pan and Shade Assembly w/3 Pin Molex Plug - 741BRFL-A, 741FLNT-A $128.07
A999523702 Complete Grille Pan and Shade Assmenbly 741WHFL-B $119.21
A1099523581 Complete Grille Pan and Shade Assembly 741WHFL-A, 741WHFLNT-A $128.07
1097015321 Ballast Transformer - 2 Required 741BRFL, 741BRFLNT, 741WHFL, 741WHFLNT $8.10
799523640 Fluorescent Lamp Holder - 741BRFL, 741BRFLNT, 741WHFL, 741WHFLNT $5.87
2697014185 Damper Assembly $4.41
