Broan 740 BR Ventilation Fan Fan/Light Brass Parts

Listed below are the parts available for this model.

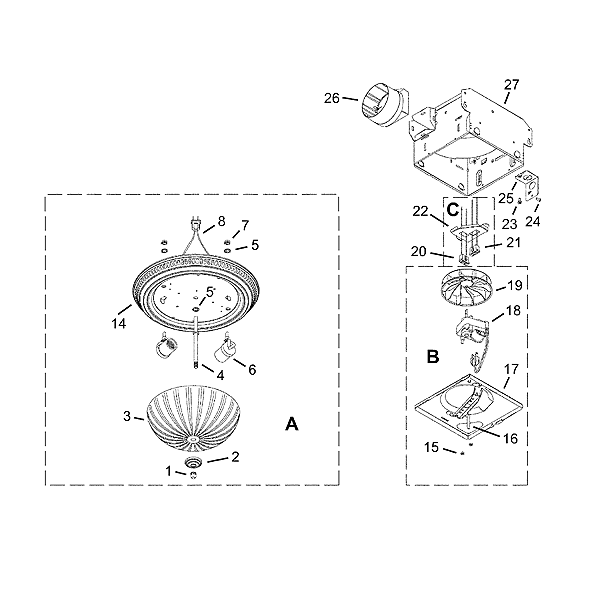

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 740 BR Ventilation Fan Fan/Light Brass Parts

Broan 740 BR Ventilation Fan Fan/Light Brass Parts breakout large

Part Key	Part Number	Description	Unit Price
	S99260425	Motor Mounting Nut (2 Required & Sold Individually)	$2.40
B	97006939	Complete Fan Assembly 740-A (Includes Key #'S 7 To 11) (70 cfm)	$62.28
C	S97015171	Wire Panel Assembly 740Wh-B/740Br-B	$18.00
B	S97015312	Blower Fan Assy F/740-B/741-B (70 cfm)	$74.70
A	S99523567	Globe Assy Brass 740Br-A This product has been discontinued
A	S99523697	Light Fixture Assy F/740Br-B This product has been discontinued
1	S97013913	Nut, Finial F/740Br	$9.32
2	S97013915	Cap, Finial F740Br	$9.38
18A	S99080166	Motor 740Wh-A/740Br-A	$45.00
18	S99080522	Motor 740Wh-B/740Br-B,C,D	$41.20
19	S99110446	Wheel For Exhaust Fan	$18.00
6	S99270981	Light Receptacle 740Wh-B/740Br-B	$18.00
20	S97013921	Asm T'Stat (Fan) F/740 Wh-A,740Br-A	$20.50
21	S99270982	Motor Receptacle 740Wh-B/740Br-B	$18.00
26	S97014185	4" Damper/Duct Connector	$18.00
