Broan 735 Heater/Fan/Light/ Night-Light Parts

Listed below are the parts available for this model.

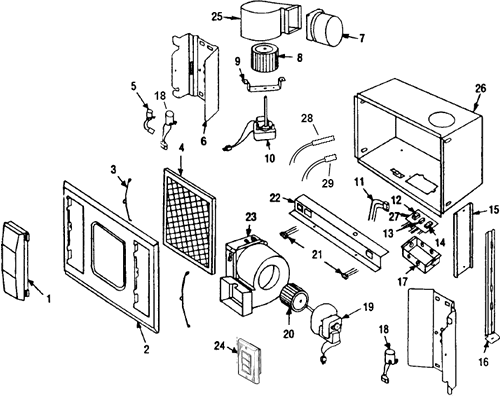

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 735 Heater/Fan/Light/ Night-Light Parts
Broan 735 Heater/Fan/Light/ Night-Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BHFLED110 New Production Unit (16" x 10-1/4" x 5-7/8" Rough in size) (Grill Cover dimension 17 3/4" x 11 3/4") 110CFM 2.0 sones 1500watt heat $386.27
  77DV 4 Function single gang Swtich Ivory
This product has been discontinued

  77DW 4 Function single gang Swtich White ( FVWCSW41-W replacement)
This product has been discontinued

  S02142-00 White Receptacle for Lights - 735-A,B $7.07
  S02178-00 Thermal Protector for Heater - $26.48
  S25064-00 Outlet. Box Cover with all Receptacles & both Thermostats REV C ONLY (Includes Key Nos. 12,13,14,27,28, & 29)
This product has been discontinued

  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S97010944 Wood Trim Oak -1 left $91.58
3 S06184-03 Grille Spring - 2 Required
This product has been discontinued

4 S76138-01 Honeycomb Assy (obsoleted)
This product has been discontinued

5 S99770075 Night-Light Socket - 7 Watt , 735-C,
This product has been discontinued

6 S25341-00 Light Reflector
This product has been discontinued

7 S97009595 Damper/Duct Connector $27.26
8 S06226-00 Blower Wheel 3.25" Diameter 1.875" Height with 3/16"see s06228
This product has been discontinued

9 S25075-00 Fan Motor Bracket
This product has been discontinued

10 02200-59 Motor Modified Fan cw 3 1/16L 7/32diam (old lenghth3 1/2 shaft) $81.00
12 S02124-03 Red Receptacle obsolete see 99270489 $18.00
13 S97014243 White Receptacle 735 units built after June 1997 $59.40
14 S02124-04 Black Receptacle $9.30
15 S98007763 Slide Bracket Channel - 2 Required $3.78
16 S98003036 Mounting Bracket (4 req.) $27.26
17 S25064-00 Outlet Box
This product has been discontinued

18 S02153-05 Single Light Socket For 60 Watt Bulb
This product has been discontinued

19 02200-60 Heater Motor (modified replacment) $69.18
20 S76105-00 Corner Clips & Screws For Wood Trim
This product has been discontinued

20 S06228-00 Metal Heater Blower Wheel 3 x 1 7/8 3/16diam
This product has been discontinued

23 S75619-02 Heater Coil
This product has been discontinued

26 S97009651 Housing
This product has been discontinued

27 S20050-10 Receptacle Plate 735 units built before June 1997. See S97014243 $5.40
27 S98009110 Receptacle Plate 735 units built after June 1997 $1.93
28 S99271168 Thermostat for Fan
This product has been discontinued

29 S97014243 Thermostat for Light $59.40
  76105-00 Parts Bag Clips $4.30
