Broan 721 Round Wood Exhaust Fan/Light Parts

Listed below are the parts available for this model.

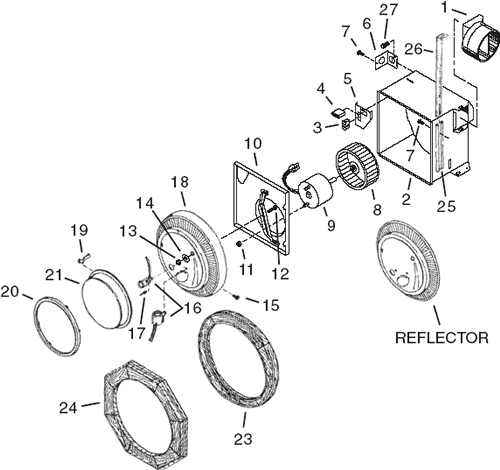

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 721 Round Wood Exhaust Fan/Light Parts
Broan 721 Round Wood Exhaust Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97003932 4" Damper/Duct Connector $6.28
 S99150538 Grille Screw - 2 Required For 721-A, B, C, $2.38
 S99420470 White Plastic Grille Nut - 2 Required, 721-A, B, C, $1.55
3S99270982 Receptacle - Black $4.00
4S99270981 Light Receptacle, White $4.00
4S99770085 Light Receptacle (4-pin) for 721-D,
8S99020276 Plastic Blower Wheel "D" $4.91
8S97009755 Blower Wheel (abc version) $10.44
9S97015192 Motor Assy. 710 Thru 722-D (Includes Key Nos. 8,9,10,11 & 12) $68.96
9S97017066 Motor Assy 710 Thru 722, -A,B,C (Includes Key Nos. 8,9,10,11 & 12) $56.66
9S97009752 Motor 721-A, B, C, ( see 97017066)
9S99080517 Motor - 721-D, $56.45
11S99260425 Motor Nut - 2 Required $1.48
12S99150583 Grille Screw/Center Screw 721-D, $1.66
12S99100399 Rubber Motor Spacers - 2 Required - 721-A, B, C, $1.73
13S97005316 Grille Acorn Nut, For Attaching Grille For 721-D, $1.37
14S99250399 Washer For Mounting Grille 721-D, $1.53
16S99770027 Light Sockets Only For (100 Watt Bulb) 721-A, B, C,
19S99140155 Spring Clips for Glass Lens - 2 Required All Units
20S99390052 Retainer Ring For Glass - Brass $25.25
21S97008781 Glass Light Lens w/Retainer Ring & springs - (Includes Key Nos. 19, 20, & 21)
23S97015177 Wood Grille Assembly Round With Both Light Sockets, 721-D (1 left)
26S98003036 Mounting Bracket (4 req.) $1.89
