Broan 720 Exhaust Fan/Light/Night-Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 720 Exhaust Fan/Light/Night-Light Parts

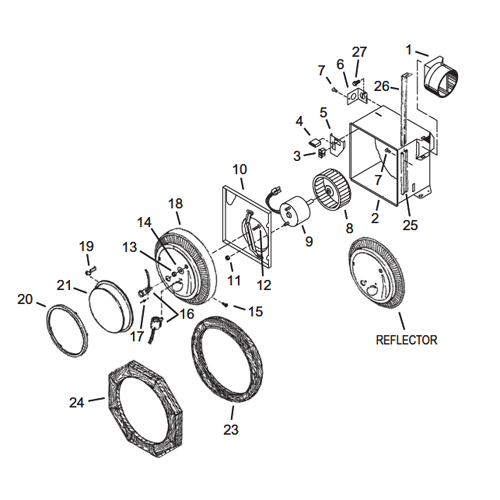

Broan 720 Exhaust Fan/Light/Night-Light Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
1S97003932 4 Inch Damper/Duct Connector $5.10
 S99150538 Grille Mounting Screw - 720-A,B,C - #8-19 x 2" - 2 Required $1.18
 S99420470 Grille Mounting Plastic Nut - 720-A,B,C - 2 Required $0.72
 S97005316 Grille Mounting Acorn Nut - 720-D - #10-24 $1.44
 S99150583 Grille Mounting Screw / Stud - 720-D - #10 -24 x 1-1/4" $0.64
 S99250399 Grille Mounting Washer - 720-D $0.72
 S99100399 Rubber Motor Spacers - 720-A,B,C - 2 Required $0.88
1S97014185 Damper / Duct Connector - 4" Round $5.10
3S99270982 Receptacle, Black $2.22
4S99270981 Light Receptacle 720-A,B,C $2.22
4S99770085 Light Receptacle 720-D $3.26
8S97009755 Blower Wheel 720-A,B,C $11.04
8S99020276 Blower Wheel 720-D $5.20
9S97009752 Motor 720-A,B,C ( obsolete see 99080517)
9S99080517 Motor 720-D $59.74
9S97015192 Motor Assy. 710 Thru 722-D (Includes Key Nos. 8,9,10,11 & 12) $72.98
9S97017066 Motor Assy 710 Thru 722, -A,B,C(Includes 8,9,10,11,12) $59.96
16S99770027 100 Wattt Socket 720-A,B,C $12.24
11S99260425 Motor Mounting Nut - #8-32 - 2 Required $0.82
16S99770086 Light Socket Assembly 720-D (Both 7 & 100 Watt) $11.54
19S99140155 Spring Clips for Glass Lens - 2 Required All Units $0.56
20S99390052 Retainer Ring For Glass - Brass $23.35
21S97008781 Glass Light Lens w/Retainer Ring & springs - (Includes Key Nos. 19, 20, & 21) $58.72
22S97008605 Grille Assy 720-A,B,C Square $116.24
22S97015176 Grille Frame720-D $107.48
26S98003036 Housing Mounting Bracket - 4 Required $1.06
