Broan 707 Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 707 Fan/Light Parts

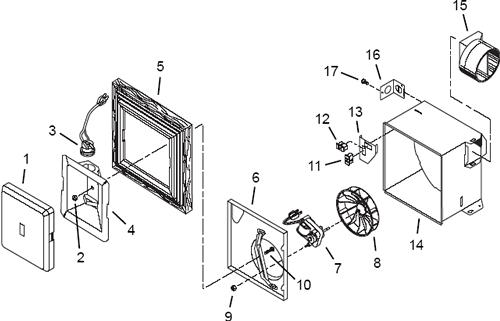

Broan 707 Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
1 S97013578 Light Lens
This product has been discontinued

2 S97005316 Acorn Nut - 707-A, B $27.26
3 S99770118 Light Socket - 707-A, B (replaced by 99770118) $27.26
4 S97014211 Light Refelctor 707-A, B $18.00
4 S97014212 Light Reflector With Socket 707-A, B (Includes Key Nos. 3 & 4) $27.26
5 S97014841 Complete Grille Assy. 707 With Lens and Light Reflector Assembly (Includes Key Nos. 1,3,4, & 5)
This product has been discontinued

5 S97014810 Wood Grille 707-A, B
This product has been discontinued

6 S97006989 Motor Mtg. Bracket - 707-A
This product has been discontinued

6 S97014926 Motor Mounting Bracket 707-B $30.60
7 S99080166 Motor - 707-A (replaced by 99080166) $42.30
7 S99080522 Motor 707-B $41.20
7 S97015165 Motor Assembly With Wheel & Bracket 707-B (Include Key Nos. 6,7,8,9, & 10) $67.68
8 S99110446 Blower Wheel - 707-A, B $18.00
9 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
10 S99150582 Grille Screw/Stud 678-G, 2678F $33.84
10 S99160309 Grille Screw/Stud 707-A
This product has been discontinued

11 S99270982 Receptacle - Black $18.00
12 S99270981 Light Receptacle, White $27.26
13 S97015171 O.B. Cover /Wire Panel Assembly with Receptacle 707-B (Includes Key Nos. 11,12, & 13) $27.26
15 S97014185 Damper Assembly - 707-A, B $27.26
16 S98008868 Electrical Knockout Plate 707-B $18.00
17 S99170245 Screw, #8-18 x 3/8" $18.00
