Broan 684 Ceiling Mount Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 684 Ceiling Mount Fan Parts

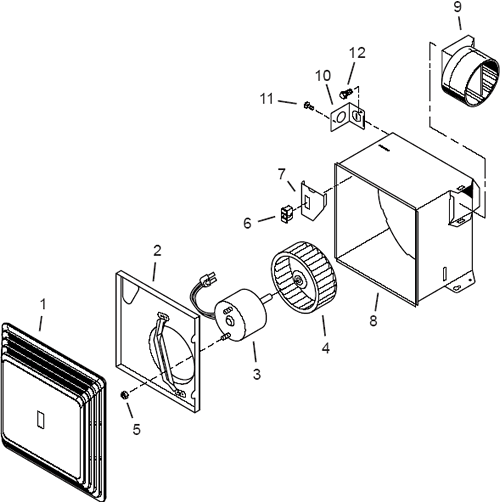

Broan 684 Ceiling Mount Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97005034 Grille Mounting Screw for Old Style Center Screw Mounted Grille $1.78
 S99110748 Grille Logo Button - Covers Screw on Old Style Center Screw Mounted Grille $2.30
 S99140192 Grille Spring - 2 Required $2.79
 S99100399 Rubber Motor Spacer - 684, 684-A,B,C - 2 Required $1.73
 S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x 3/8" $1.62
 S99390015 Ground Clip - 684, 684-A,B,C
 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $1.48
 S97013880 Grille Conversion Kit for Center Screw Mounted Grilles $14.96
1S97011308 Metal Grille Kit with Springs fits all units $43.09
1S97013576 Plastic Grille with Springs *** $9.56
2S97006987 Motor Bracket 684, 684-A, B, C, 684F-A, B, C* $7.20
2S97014926 Motor Bracket 684-D, 2684F-A ** $5.89
3S99080518 Motor 684-D, 2684F-A BC** $55.82
3S97009745 Fan Assembly with Wheel & Motor Bracket 684-A, B, C, 684F-A, B, C (Include Key Nos. 2,3,4,& 5)* $70.02
3S97015159 Fan Assembly With Wheel & Motor Bracket 684-D, 2684F-A (Include Key Nos. 2,3,4,& 5) ** $68.13
4S97009755 Blower Wheel 684, 684-A, B, C, 684F-A, B, C* $10.44
4S99020276 Plastic Blower Wheel $4.91
5S99260425 Motor Nut - 2 Required $1.48
6S99270982 Receptacle - Black $2.11
9S97003932 4" Damper/Duct Connector - 683-C $6.28
10S98008868 Screw For Attaching Electrical Knockout Plate Plate ** $2.32
10S97015170 O.B. Cover/Panel With Receptacle (Includes Key Nos. 6 & 7)** $8.37
12S99150471 Screw, #10-32 x 1/2" Hex Washer Head $1.51
