Broan 683L Ventilation Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

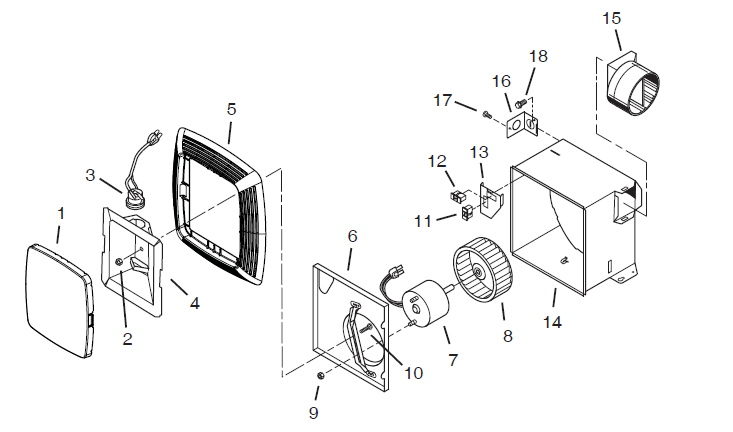

Broan 683L Ventilation Fan/Light Parts
Broan 683L Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 FG500NS Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") $40.18
0 FG600S Upgrade Grille/Cover w/ LED Light (11 x 9 3/4 spring gap 7") (FG600S) $40.18
  FG800SPKNS Bluetooth Exhaust Fan Grille/Cover w/ LED Light( 11" x 9-3/4" x 2" grille) $85.60
  FG800RGBS UPGRADE GRILLE ASSEMBLY - Blue Tooth Speaker -Color Change Led (10.25x 9.75 ) $84.64
  FG600RGBS Upgrade Grille Assembly, Color Change LED (10.25 x 9.75 ) $87.62
0 FG800SPKS Bluetooth Exhaust Fan Grille/Cover w/ LED Light 11" x 9-3/4" x 2" grille $86.62
1 S99111371 Light Lens (Grille Sold Seperate 99111370) 7 9/16 x 8 7/16 $42.30
2 S97005316 Acorn Nut - (For Attaching Grille/Light Reflector) $27.26
3 S99770118 Lamp Socket $27.26
4 S97014211 Light Reflector
This product has been discontinued
4 S97014212 Light Reflector With Socket $27.26
5 S99111370 Grille ( Lens Sold Seperate 99111371) $27.26
6 S97014926 Motor Plate $30.60
6 S97015162 Blower Assembly (6 Through 10) $131.60
7 S99080520 Motor $95.73
8 S99020276 Plastic Blower Wheel
This product has been discontinued
9 S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
10 S99150582 Grille Screw $33.84
11 S99270982 Receptacle, Black-C $18.00
12 S99270981 Light Receptacle, White-C $27.26
13 S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
13 S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
15 S97014185 4" Damper/Duct Connector $27.26
16 S98008868 Electrical Knockout Wiring Plate $18.00
17 S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x 3/8" $18.00
18 S99150471 Ground Screw - #10-32 x 1/2" $18.00
