Broan 680FLT Ventilation Fan/Light Parts

Listed below are the parts available for this model.

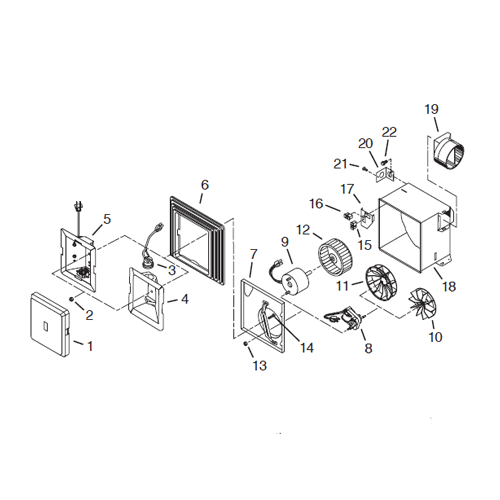

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 680FLT Ventilation Fan/Light Parts
Broan 680FLT Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0 S97016889 13 Watt 4 Pin Flourescent Bulb $36.66
  S99150471 Ground Screw - #10-32 x 1/2" $18.00
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97013578 Light Lens(8X7) Plastic
This product has been discontinued

2 S97005316 Acorn Nut - (For Attaching Grille/Light Reflector) $27.26
5 S97016895 Light Reflector Assembly includes Socket & Ballast
This product has been discontinued

6 S97013974 Grille 679Flt, 680Flt $27.26
6 S97014094 Grille & Lens (Keys 1 & 6) Fit All $38.54
7 S97015157 Blower Assy 680Flt (Keys 7,9,12,13 & 14) $109.98
7 S97014926 Motor Plate $30.60
8 S99080517 Motor 680FLT $75.20
10 S99020276 Plastic Blower Wheel
This product has been discontinued

10 S97014185 4" Damper/Duct Connector $27.26
14 S99150582 Grille Screw $33.84
13 S99260425 Motor Mounting Nut - #8-32 - 2 Required $2.40
15 S99270981 Light Receptacle, White $27.26
16 S99270982 Receptacle, Black $18.00
17 S98009612 Outlet Cover/Wire Panel (Without Receptacles) $18.00
17 S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $27.26
20 S98008868 Electrical Knockout Wiring Plate $18.00
21 S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x3/8" $18.00
