Broan 679FLT Ventilation Fan/Light Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

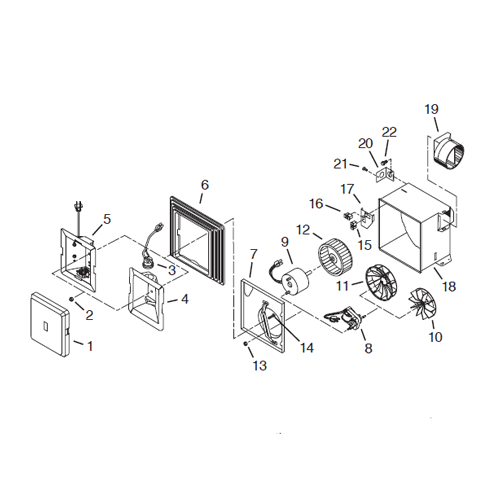

Broan 679FLT Ventilation Fan/Light Parts
Broan 679FLT Ventilation Fan/Light Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
0S97016889 13 Watt 4 Pin Flourescent Bulb $32.87
1S97013578 Light Lens E,F,G VERSION(8X7 rounded corners) Plastic $13.59
2S97005316 Acorn Nut - (For Attaching Grille/Light Reflector) $1.62
5S97016895 Light Reflector Assembly includes Socket & Ballast $68.63
6S97013974 Grille Only E,F,G VERSION(10 5/8 X 11.25) $13.97
6S97014094 Grille & Lens (Keys 1 & 6) FIT ALL $20.70
7S97014926 Motor Mounting Bracket & Plate $13.86
8S97015165 Blower Assy (Key #'S 7,8,11,13 & 14) $51.32
8S99080522 Motor 679-E, 2679F-A, $41.20
11S99110446 Wheel For Exhaust Fan $8.32
13S99260428 Motor Mounting Nut - #6-32 x 5/16" - 2 Required $3.42
14S99170245 Screw for Attaching Electrical Knockout Plate - #8-18 x3/8" $3.42
14S99150582 Srv Grille Screw $3.46
15S99270982 Receptacle, Black $4.25
16S99270981 Light Receptacle, White $4.25
17S98009612 Outlet Cover/Wire Panel (Without Receptacles) $3.64
17S97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $11.65
19S97014185 4" Damper/Duct Connector $7.52
20S98008868 Electrical Knockout Wiring Plate $3.64
21S99150471 Ground Screw - #10-32" x 1/2" $3.42
