Broan 658 Bathroom Fan With Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 658 Bathroom Fan With Heater Parts

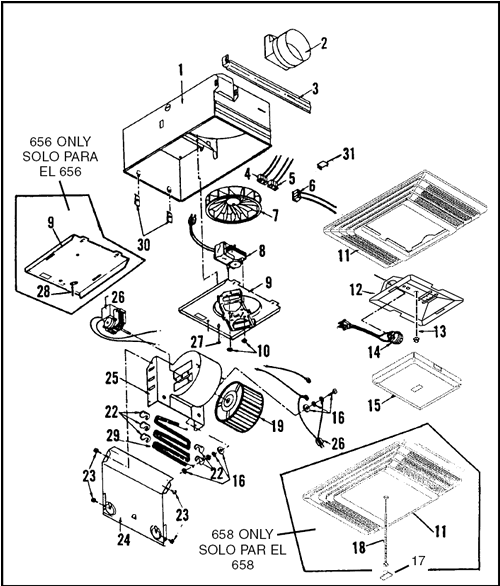

Broan 658 Bathroom Fan With Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  BHF80 Brand New Production (Will Not Fit Into Existing Housing)(14.25x8.24x5.75 rough 16-25x9.75 grille) $192.42
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
2 S97003932 4" Damper/Duct Connector - 683-C $27.26
3 S98003036 Mounting Bracket (4 Req.) $27.26
5 S99270748 Receptacle, Black For Fan $18.00
6 S99270489 Receptacle, Red For Heater $27.26
8 S97005327 Exhaust Fan Assembly - 658 (Includes Key Nos. 7,8,9 &10) $69.56
7 S99110446 Wheel For Exhaust Fan $18.00
8 S99080166 Motor For Exhaust Fan $42.30
9 S97006987 Fan Motor Bracket- 658 $27.26
11 S97013581 Grille - 658 (Includes Key Nos 11,17 & 18) 16 3/4 x 10 5/8 $79.90
11 S99110440 Original Grill see s97013581
This product has been discontinued

16 S97005058 Terminal/Bolt Assembly, 3 Req. $18.00
17 S99110748 Grille Logo Button - 658 $27.26
18 S99150566 Grille Screw - 658 $27.26
19 S99020290 Blower Wheel, Dual Inlet F/ Combo Htrs $27.26
16 S97011810 Thermal Cutoff $27.26
22 S99270107 Ceramic Hook For Heater - 5 Required $27.26
29 S98004514 Heater Element $27.26
23 S97017063 Heater Assy Complete-16,17, 19,20,24,27 $154.16
24 S98003788 Heater Scroll Housing Cover $18.00
25 S97005006 Heater Scroll Housing $31.93
26 S97017062 Heater Motor/ With Wheel $93.06
  658F Builders Finish Pack Kit
This product has been discontinued

  654H Builders Housing Pack Kit
This product has been discontinued
