Broan 614804EX Stainless Steel Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 614804EX Stainless Steel Range Hood Parts

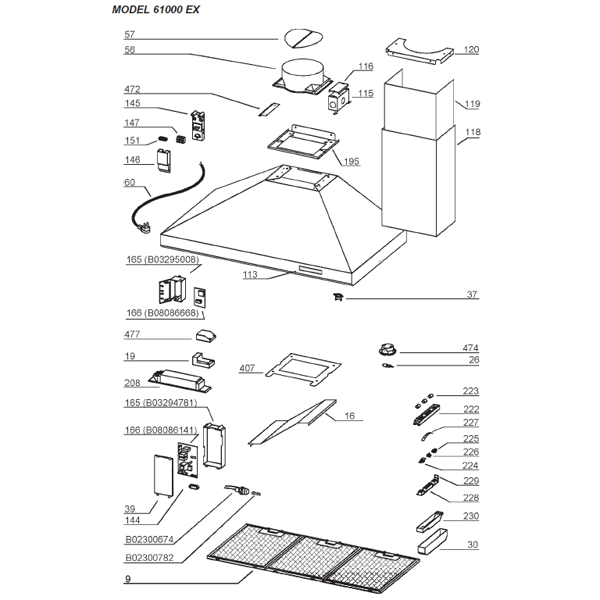

Broan 614804EX Stainless Steel Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  S99091031 Logo Sticker - will read "Broan Elite" $27.26
  SB08092501 Metal Damper Duct Connector - for units built after 09/07
This product has been discontinued

* 614804EX Complete New Unit $1,691.04
0 HCK44 Cord Kit with 6' cord and plug $42.30
  SB02300782 Fuse 4-Amp. 5mm X 20mm $27.26
  SB06108080 Switch Assembly 614804EX
This product has been discontinued

9 SB08087163 Filter 4-Required(sold each) 9.25 x 12.75 $76.14
26 SB02300891 Halogen Bulb (G4 Base, 12 Volt, 20 Watt) $18.95
37 SB02300787 Heat Sentry $59.22
56 SB08085018 Damper Duct Connector $67.68
113 SB03202433 Rangemaster Logo (replaced by V03493) $4.88
118 SBE3341301 Lower Flue $169.20
119 SBE3341311 Upper Flue $113.74
120 SBE3300517 Upper Flue Mounting Bracket $47.00
166 SB08086141 Replaced By B08080141 $87.42
166 SB08086668 Small Control Board 614804EX ** $84.60
208 SB02300729 Transformer $150.40
223 SB03292294 Buttons for Switch (3-Required)
This product has been discontinued

474 SB02300789 Light Socket & Housing & Round Lens $27.26
