Broan 523068 Two-Speed Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 523068 Two-Speed Range Hood Parts

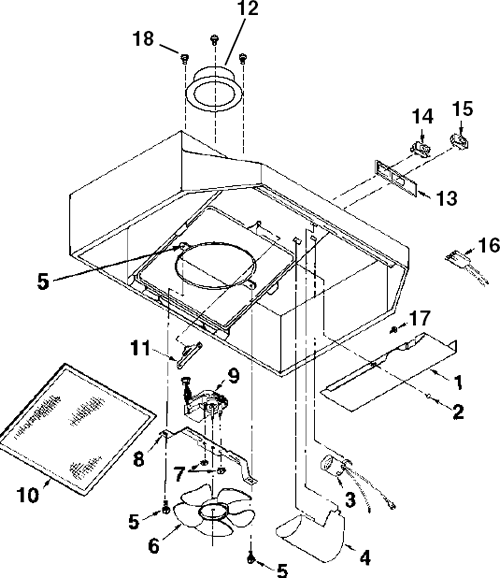

Broan 523068 Two-Speed Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
4 S99110437 Light Lens 4 3/4 X 3 X 1 1/2 $27.26
0 HCK44 Cord Kit with 6' cord and plug $42.30
6 S99020272 Fan Blade $27.26
9 S97014665 Complete Fan Assy. $83.66
10 S97006931 Aluminum Filter 8¾” x 10½” $27.26
11 S99420472 Plastic Filter Clip/Retainer $27.26
12 S97014729 5" Damper Assy. with Flaps (not packaged with hood)
This product has been discontinued

14 S99030315 Motor Switch Black (obsolete replaced by 97016970) $0.00
14 S99030316 Motor Switch White (Obsolete, replace w 97016971) $0.00
15 S99030310 Obsolete Light Switch - Black, Rpl By 97016970 $0.00
15 S99030311 Obsolete Light Switch - White Replaced By 97016971 $0.00
10 S97016970 Black- Light Switch-2Prong $42.30
10 S97016971 White- Light Switch-2Prong $27.26
