Broan 508 Wall Mounted Exhaust Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

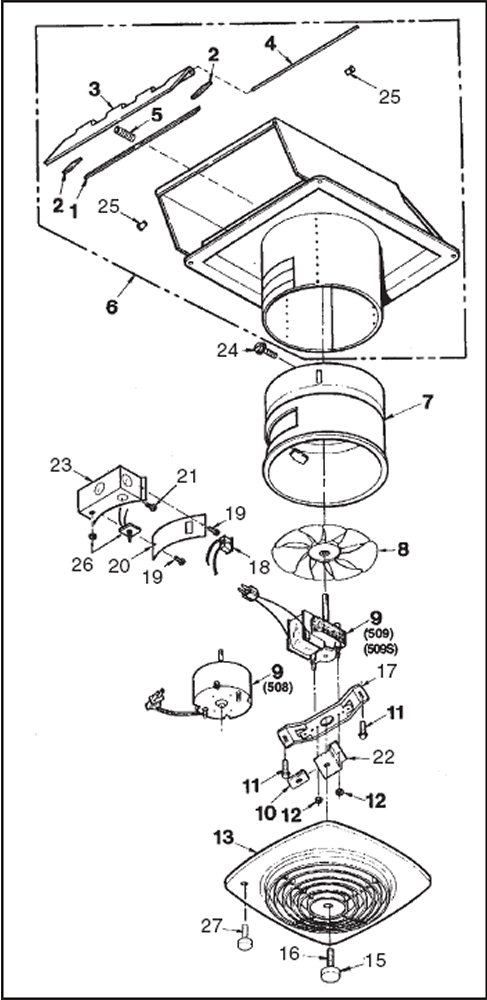

Broan 508 Wall Mounted Exhaust Fan Parts
Broan 508 Wall Mounted Exhaust Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  508 Brand New 508 10" through the wall (13.5grille w/ 14 1/4 outside)
This product has been discontinued

  S99420612 Grille Mounting Stud Screw $27.26
  S98008494 Grille Mounting Stud Bracket $27.26
  S99260434 Grille Mounting Stud Sheet Metal Nut $27.26
  S99260428 Motor Mounting Nut $18.00
  S99150479 Motor Bracket Mounting Screw $27.26
  S97011241 Outter Housing $147.58
  S99100489 Long Foam Strip on Damper Flap $27.26
  S99100490 Short Foam Strip on Damper Flap $27.26
  S99170245 Outter Box Cover Mounting Screw $18.00
  S97013672 Inner Housing $29.14
  S97013685 Parts Bag $27.26
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
  S99010271 Aluminum Filter $27.26
  S99160322 Grille Mounting Screw, 3" - 508-A,B - 2 Req.
This product has been discontinued

1 S99420580 Grille Screw - 508-C,D $27.26
3 S98006086 Damper Flap $27.26
4 S98006048 Damper Rod $27.26
5 S99140145 Damper Spring, 2-Required $18.00
8 S99020166 Blade - 508-A, B, C $27.26
8 S99020271 Blade - 508-D, $27.26
9 S99080596 MOTOR, 508-A,B,C,D (CW, ja2p258n cw 1700rpm,5 16"shf) $106.22
13 S97011851 Grille - 508-C,D Center Mount (13.5 square) $52.64
13 S97014186 Grille - 508-A,B - Replaces 2 Screw Mount $117.50
15 S97011918 Grille Mounting Knob - 508-C, D $18.00
17 S98006066 Motor Mounting Bracket $27.26
18 S99270748 Receptacle $18.00
20 S98006047 Outlet Box Cover $27.26
23 S98006046 Outlet Box $27.26
25 S99100379 Damper Rod Bushing 2-Required $18.00
