Broan 507 Wall Ventilation Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

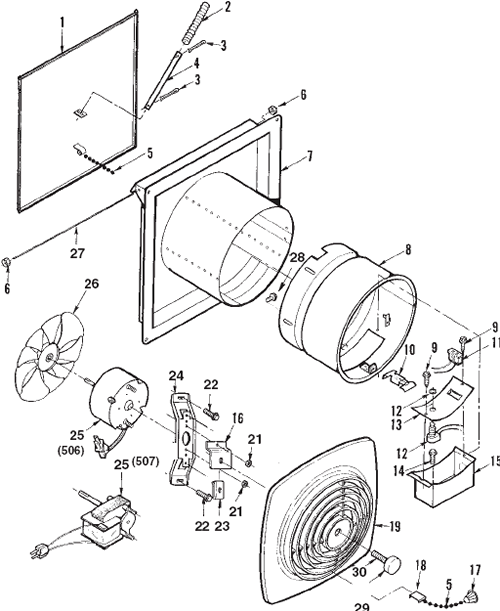

Broan 507 Wall Ventilation Fan Parts
Broan 507 Wall Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  507 Brand New 507 W/Plastic Grille(8"hole, Grille 11.5 outside 14 1/4 w/ pull chain)
This product has been discontinued

  S97011734 Parts Bag
This product has been discontinued

  S99260428 Motor Mounting Nut (2 Required & Sold Individually) $18.00
1 S97007003 Door - 507 $98.70
2 S99140147 Door Spring $27.26
3 S99410005 Cotter Pin $18.00
4 S98006073 Door Hinge Rod $27.26
4 S98006067 Door Arm $27.26
5 S99450101 Chain - 30" Long $27.26
6 S99420478 Pushnut $27.26
8 S97010379 INNER HSG WLDMNT F/507 $27.26
7 S97007091 Outter Housing $32.15
10 S99390035 Switch Trigger $51.70
11 S99270748 Receptacle $18.00
12 S99030157 Switch $27.26
13 S98007823 Outlet Box Cover $27.26
15 S98006046 Outlet Box $27.26
17 S99110563 Pendant $27.26
18 S98006761 Chain Guard for Grille - 507-A,B $27.26
18 S98007825 Chain Guard for Grille - 507-C $33.84
19 S97011791 Grille 507-A,B Replaces 2 Screw Mount( requires 99160410 ordered seperately) $48.88
16 S98007819 Grille Mounting Stud Bracket $33.84
19 S97011919 Grille Assembly - Includes Knob (11 1/2 " Square) $35.72
24 S98007820 Motor Mounting Bracket
This product has been discontinued

18 S98006059 Chain Lock $27.26
19 S99160410 Mounting Screw's for A Grille $1.85
25 S99080176 Motor - 507, 507MG-A $82.72
26 S99020165 Fan (9-Blade Plastic) $27.26
29 S97011918 Grille Mounting Knob - 507-C,
This product has been discontinued

21 S99260428 Motor Mounting Nut $18.00
22 S99150479 Motor Bracket Mounting Screw $27.26
30 S99420585 Grille Mounting Screw, 507-C, - 1 Req. $33.84
30 S99420479 Grille Mounting Stud Sheet Metal Nut $33.84
31 S99160322 Grille Mounting Screw, 3'’ - 507-A,B - 2 Req.
This product has been discontinued
