Broan 504 Vertical Discharge Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 504 Vertical Discharge Fan Parts

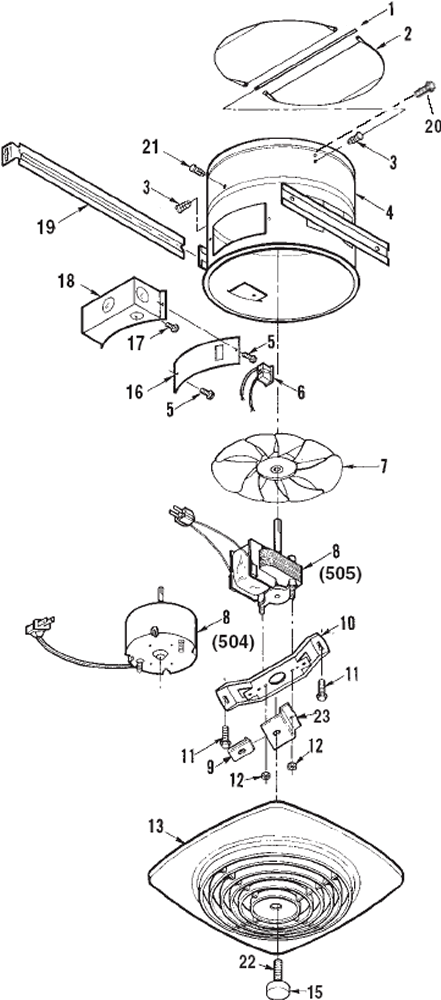

Broan 504 Vertical Discharge Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
 505 Brand New 505 W/Plastic Grille $141.37
 S99260428 Motor Mounting Nut (2 Required & Sold Individually) $18.00
 S97011883 Parts Bag $8.71
 S99010271 Aluminum Filter 10 1/2 ROUND $18.00
6S99270748 Receptacle $18.00
7S99020166 Blade - 504-A, B $21.60
7S99020271 Blade 504-C, $18.00
4S97007080 Housing $25.83
8S99080596 Motor 504-A,B,C $112.50
10S98006066 Motor Mounting Bracket $18.00
13S97011851 Grille - 504-B, C Center Mount (13.5 square) $55.80
13S97011789 Grille - 504-A Replaces 2 Screw Mount $39.60
15S97011918 Grille Mounting Knob $18.00
16S98006047 Outlet Box Cover $18.00
10S98008494 Grille Mounting Stud Bracket $18.00
11S99150479 Motor Bracket Mounting Screw $18.00
18S98006046 Outlet Box $6.14
19S98003036 Mounting Bracket (4 req.) $18.00
12S99260425 Motor Mounting Nut $2.40
13S97013825 Metal Grille Assembly
This product has been discontinued
22S99160322 Grille Mounting Screw, 3" - 504-A, - 2 Req.
This product has been discontinued
22S99420580 Grille Screw - 504-B - 1 Req. $18.00
22S99260434 Grille Mounting Stud Sheet Metal Nut $18.00
