Broan 463602 Range Hood Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 463602 Range Hood Parts

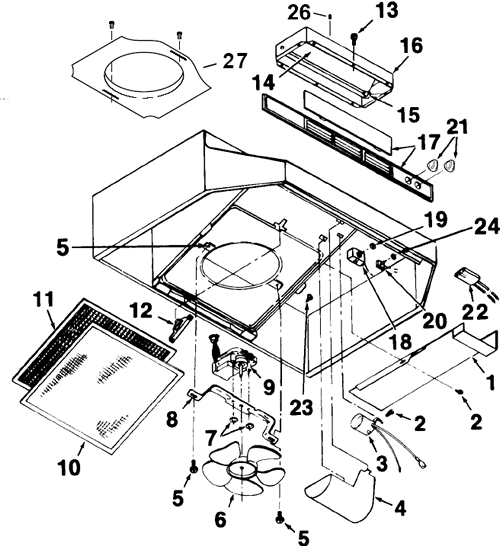

Broan 463602 Range Hood Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* 463602 Complete New Unit
This product has been discontinued
0 HCK44 Cord Kit with 6' cord and plug $20.70
  S97010792 7" Round Damper (Optional, not included with hood) $42.30
  S99090457 Black Louver Cover $27.26
  S99090983 White Louver Cover $19.80
  S99090985 Almond Louver Cover
This product has been discontinued
  S99091029 Biscuit Louver Cover $20.95
  S99420040 Hairpin Clip $27.26
1 S97006184 Outlet Box Cover $33.84
3 S97010966 Light Socket $27.26
4 S99110437 Light Lens $27.26
6 S06118-00 Fan Blade - all except 46000-H, K $27.26
6 S99020272 Fan Blade $27.26
8 S98005568 Motor Mounting Bracket $27.26
9 S97011224 Complete Fan Assembly All Units (Includes Key Nos. 6,7,8) $90.24
10 S97006931 Aluminum Filter 8¾” x 10½” $27.26
11 S97007696 Non-Ducted Filter 8¾” x 10½” $27.26
12 S99420472 Plastic Filter Clip/Retainer $27.26
16 S97005544 Damper Assembly 3-1/4" X 10" $33.84
17 S97007599 Black Nameplate With Louver Cover 46,000-A Thru K
This product has been discontinued
17 S97013938 White Nameplate With Louver Cover 46,000-K Only
This product has been discontinued
17 S97013939 Almond Nameplate With Louver Cover 46000-K Almond on Almond $20.68
17 S97015718 Black Nameplate With Louver Cover 46000-L $25.20
17 S97015719 White Nameplate With Louver Cover 46000-L $27.26
17 S97015720 Almond Nameplate With Louver Cover 46000-L Almond on Almond $11.03
17 S97015721 Biscuit Nameplate With Louver Cover 46000-L Biscuit on Biscuit $0.00
18 S97007159 Fan Switch - 46000-A thru J (Prior -1996) $133.48
18 S99030285 Fan Switch - 46000-K,L, $42.30
20 S97005328 Light Switch 46000-A thru K, $27.26
20 S97016438 Light Switch 46000-L, $33.84
21 S600348 Knob in Black, Sold Individually $27.26
21 S600349 Knob in White, Sold Individually $27.26
21 S99360234 Knob - Almond - (Must Order 2* for 46,000 Units Prior 1999) $2.03
21 S99360248 Knob - Biscuit - 2 Required $1.38
22 S97005678 Female Receptacle That Motor Plugs Into With Wire Leads $33.84
22 S97013649 Wire Harness (Includes Key # 3,18, and 20) $51.70
27 SR680508 7" Round Duct Plate $37.60
