Broan 362 Lo Sone 200 Cfm Ventilation Fan Parts

Listed below are the parts available for this model.

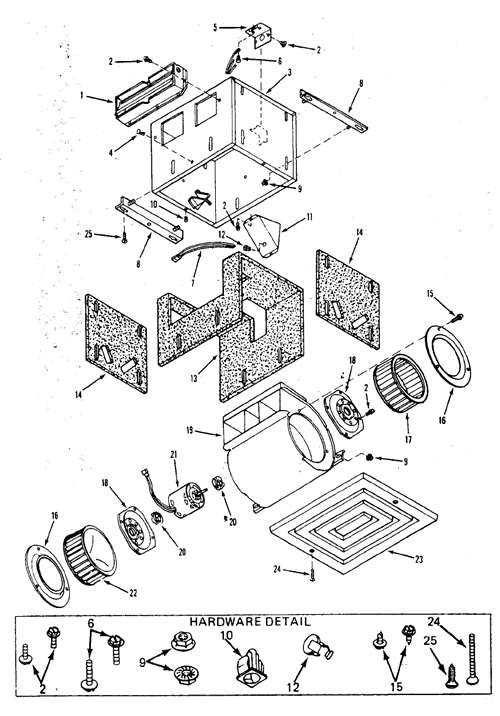

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 362 Lo Sone 200 Cfm Ventilation Fan Parts
Broan 362 Lo Sone 200 Cfm Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  L200E New Production, Complete (will not fit into existing housing new 12.25x12.25 x11.75 on 8" duct $230.56
  S97008729 ALUMINUM FILTER 10½” x 14"
This product has been discontinued

1 S97005544 DAMPER ASSEMBLY 3-1/4" X 10" $33.84
5 S98005512 WIRING ADAPTER PLATE $27.26
8 S97006061 HOUSING MOUNTING BRACKET
This product has been discontinued

7 S97006039 WIRE HARNESS FOR MOTOR PLUG $33.84
9 S99260477 NUT, 1/4-20 FLANGED HEX $18.00
10 S99420470 WHITE PLASTIC GRILLE NUT - 2 REQUIRED $27.26
11 S98005513 WIRING BOX COVER
This product has been discontinued

16 S98006714 SCROLL VENTURI RING
This product has been discontinued

17 S99020014 BLOWER WHEEL CW
This product has been discontinued

18 S95000963 MOTOR CUP
This product has been discontinued

19 S97007315 BLOWER HOUSING $72.22
20 S99100412 MOTOR MOUNTING RUBBER - 2 REQUIRED
This product has been discontinued

21 S99080151 MOTOR $204.92
21 S97006023 COMPLETE BLOWER ASSEMBLY - 362 (INCLUDESKey Nos. 15,16,17,18,19,20,21, & 22)
This product has been discontinued

22 S99020015 BLOWER WHEEL CCW $57.60
23 S99110507 GRILLE PLASTIC 12 1/8 x 15 1/2 (maybe s99110807 might work)
This product has been discontinued

24 S99150472 GRILLE MOUNTING SCREWS - 2 REQUIRED
This product has been discontinued
