Broan 360 Losone 100Cfm Ventilation Fan Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 360 Losone 100Cfm Ventilation Fan Parts

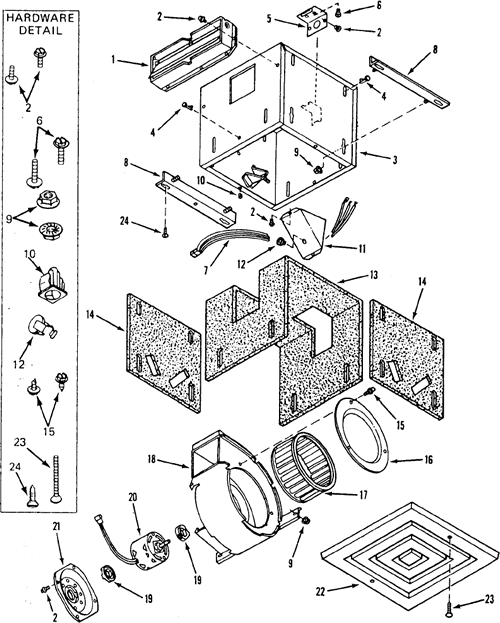

Broan 360 Losone 100Cfm Ventilation Fan Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  L100E New Current production complete (will not fit into existing housing 6" duct, grille 14X14 $202.69
1 S97005544 DAMPER ASSEMBLY 3-1/4" X 10" $33.84
5 S98005512 WIRING ADAPTER PLATE $27.26
8 S97006061 HOUSING MOUNTING BRACKET
This product has been discontinued

9 S99260477 NUT, 1/4-20 FLANGES HEX $18.00
7 S97006039 Wire Harness for Motor Plug $33.84
10 S99420470 WHITE PLASTIC GRILLE NUT - 2 REQUIRED $27.26
11 S98005513 WIRING BOX COVER $1.73
22 S99110506 GRILLE PLASTIC (12 1/4 x 12 1/4 x 3/4) $50.40
16 S98001187 Scroll Venturi Ring $2.47
17 S99020014 BLOWER WHEEL CW $57.60
18 S97011269 BLOWER HOUSING 360-361
This product has been discontinued

19 S99100412 MOTOR MOUNTING RUBBER - 2 REQUIRED
This product has been discontinued

20 S97008583 MOTOR ONLY $176.72
20 S97008579 MOTOR/BLOWER ASSEMBLY - (INCLUDES KEY NOS. 2,9,15,16,17,18,19,20,21)
This product has been discontinued

21 S95000963 MOTOR CUP
This product has been discontinued

22 S98005876 METAL GRILLE
This product has been discontinued

23 S99150472 GRILLE MOUNTING SCREW - 2 REQUIRED
This product has been discontinued

  S97006137 Parts Bag $27.26
