Broan 356BK 1600Cfm Black Attic Ventilator Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 356BK 1600Cfm Black Attic Ventilator Parts

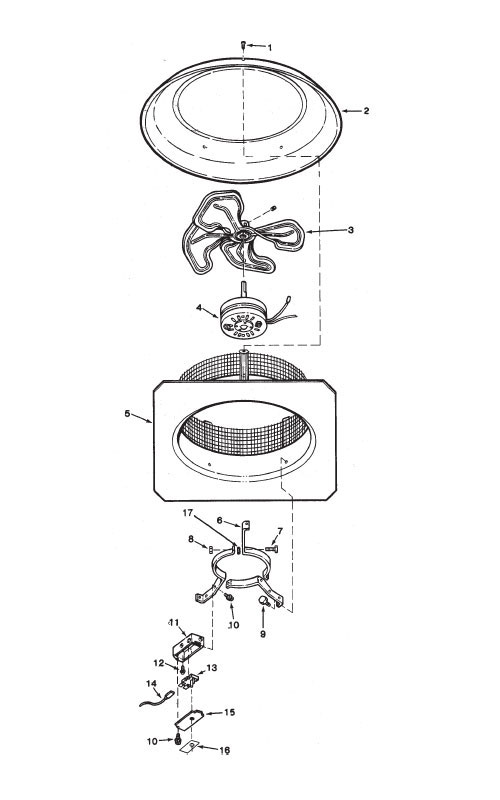

Broan 356BK 1600Cfm Black Attic Ventilator Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown356BK NEW COMPLETE 356Bk, MAY NOT FIT INTO EXISTING HOUSING $171.29
 S98006746 COVER $1.26
 S98006877 COVER $0.72
2S99111462 PLASTIC BROWN $37.66
2S98005419 ALUMINUM DOME $78.86
2S99111463 PLASTIC DOME, BLACK $38.78
3S97006971 BLADE $35.40
4S97015612 MOTOR 1600 CFM (G AFTER 2001) $174.20
4S97009318 MOTOR (A,B,C,D,E,F) $135.47
6S98008298 MOTOR MOUNTING BRACKET, 3 - REQUIRED $4.08
11S98009886 WIRING BOX $2.42
13S97008413 THERMOSTAT $28.26
14S97005329 WIRE LEAD ASSY ATTIC FAN $1.03
15S98009886 WIRING BOX COVER (D,E,F,G) $2.36
15S98009757 WIRING BOX COVER (A,B) $2.70
41S98009757 WIRING BOX $2.81
