Broan 336 1500 Cfm Exterior Blower Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 336 1500 Cfm Exterior Blower Parts

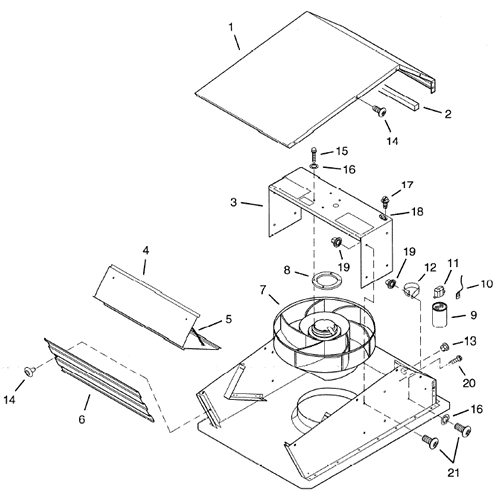

Broan 336 1500 Cfm Exterior Blower Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* 336 Complete New Unit $1,226.07
  S97017160 MOTOR- Blower Wheel, Capacitor $1,243.62
1 S98009538 TOP COVER $95.88
2 S99100531 FOAM STEEL $4.82
3 S98009539 MOTOR SUPPORT $45.29
4 S98009541 DAMPER FLAP, 2-REQUIRED $27.26
5 S99140145 DAMPER SPRING, 2-REQUIRED $18.00
6 S98009537 BIRD SCREEN/GRILLE $27.26
7 S99080594 MOTOR & WHEEL $1,092.28
8 S99271345 MOTOR CAPACITOR $79.90
9 S99271222 WIRE ASSEMBLY see 97017160 comes with assemble
This product has been discontinued
10 S99100530 TERMINAL RUBBER BOOT $5.87
  S99400079 Bushing $3.60
  S99150478 Screw #8-18x3/8 $27.26
  S99260477 Whiz nut 1/4"-20 $18.00
  S99150471 Screw #10-32x1/2" $18.00
