Broan 335 1200 Cfm Exterior Blower Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 335 1200 Cfm Exterior Blower Parts

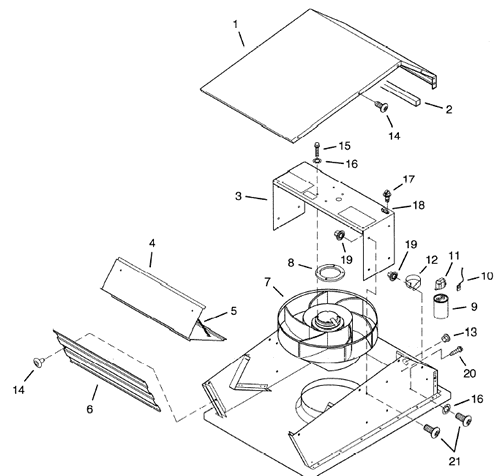

Broan 335 1200 Cfm Exterior Blower Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
*335 Complete New Unit
This product has been discontinued

 S97015527 SPACER RING $17.78
1S98009429 TOP COVER $161.10
2S99100532 FOAM STEEL $4.36
3S98009430 MOTOR SUPPORT $32.85
4S98009497 DAMPER FLAP, 2-REQUIRED $32.40
5S99140145 DAMPER FLAP, 2-REQUIRED $18.00
6S97016229 SRV GRILLE F/1200 EXTERNAL $24.70
7S99080478 MOTOR & WHEEL ASSEMBLY - 335* $1,096.20
8S97015531 MOTOR CAPACITOR $44.53
9S99271222 WIRE ASSEMBLY $2.63
10S99100530 TERMINAL RUBBER BOOT $5.87
