Broan 283003 Downdraft Ventilation System Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 283003 Downdraft Ventilation System Parts

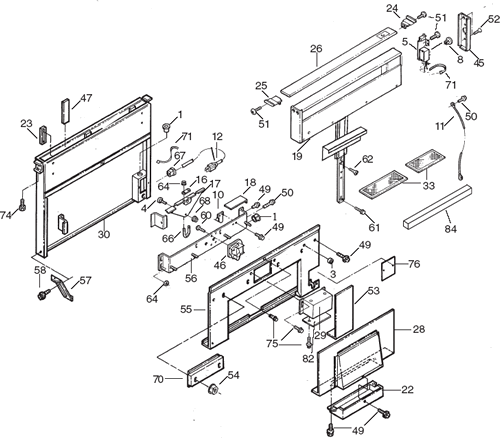

Broan 283003 Downdraft Ventilation System Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
* 283003 Complete New Unit (external Blower required 331h,332h,335,336,hlb3,6,9,11)
This product has been discontinued

  S97011927 SPEED CONTROL W/UP/DOWN SWITCH (INCLUDES KEY #5,6,7 & 8) $153.22
  S99111230 FINGER TOUCH BUTTON COVER- BISCUIT- 1" x 1" SQUARE $33.84
  S99111235 FINGER TOUCH BUTTON COVER - BLACK - (REPLACES GRAY) 1" x 1" SQUARE $27.26
  S97010998 AIR BOX / HOUSING - 2830 $143.08
  S98008174 AIR BOX COVER $83.92
  S99111236 FINGER TOUCH BUTTON COVER - WHITE - 1" x 1" SQUARE $33.84
  S97011259 RIGHT SIDE TOP BRACKET FOR TOP COVER $33.84
  S97011260 LEFT SIDE TOP BRACKET FOR TOP COVER $33.84
  S97011238 SWITCH ASSEMBLY, UP/DOWN $33.84
  S99360165 KNOB FOR SPEED CONTROL $27.26
  S99150526 SCREWS USED TO ATTACH SIDE & SWITCH BRACKET TO TOP COVER / CHIMNEY ASSEMBLY - #8-18 x 3/8" - 6 REQUIRED $27.26
  S99150488 SCREW USED TO ATTACH SWITCH COVER TO SIDE OF CHIMNEY - #8-18 x 1/4" - 2 REQUIRED $27.26
  S97009972 LOWER MICRO SWITCH ASSEMBLY $59.22
  S97010997 CORD $48.60
  S99710032 PLASTIC SPACER- 3 REQUIRED $27.26
  S97010999 OUTLET ASSEMBLY $85.72
  S97011322 TOP, STAINLESS $103.40
  S97011447 TOP, WHITE $95.88
  S99080590 GEAR MOTOR $171.08
  S97011500 GEAR MOTOR BRACKET ASSEMBLY $50.76
  S97011449 TOP, BLACK $125.02
  S97009786 ALUMINUM FILTER SET (3 7/8 x 8 & 3 78 x 10 3/8) $42.30
  S97011443 GEAR MOTOR COVER $27.26
  S99150415 SCREW USED TO ATTACH GEAR MOTOR COVER TO AIR BOX ASSEMBLY - #8-18 x 1/4" - 2 REQUIRED $27.26
  S99080295 GEAR MOTOR $92.00
  S99110850 SLIDE STRIP $27.26
  S99260437 NUT FOR U BOLT - 2 REQUIRED $0.72
  S99380633 U BOLT $27.26
  331H Exterior Blower 600 Cfm (need 332kr)
This product has been discontinued

  332H Exterior Blower 900 Cfm (need 332kr) $736.76
  335 Exterior Blower 1200 Cfm (need 332kr)
This product has been discontinued

  336 Exterior Blower 1500 Cfm (need 332kr) $1,226.07
  332KR Rough in Plate for 10" w/ Power Cord for Exterior Blowers $293.40
  HLB3 In Line Blower Exhaust 280Cfm
This product has been discontinued

  HLB6 In Line Blower Exhaust 600Cfm
This product has been discontinued

  HLB9 In Line Blower Exhaust 800Cfm
This product has been discontinued

  HLB11 In Line Blower Exhaust 1100Cfm
This product has been discontinued

  ARP310 Air Redution Plate
This product has been discontinued

45 S99090939 End Cap $41.40
  S99100544 Foam Seal $19.80
