Broan 273603 Downdraft Ventilation System Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 273603 Downdraft Ventilation System Parts
Broan 273603 Downdraft Ventilation System Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity

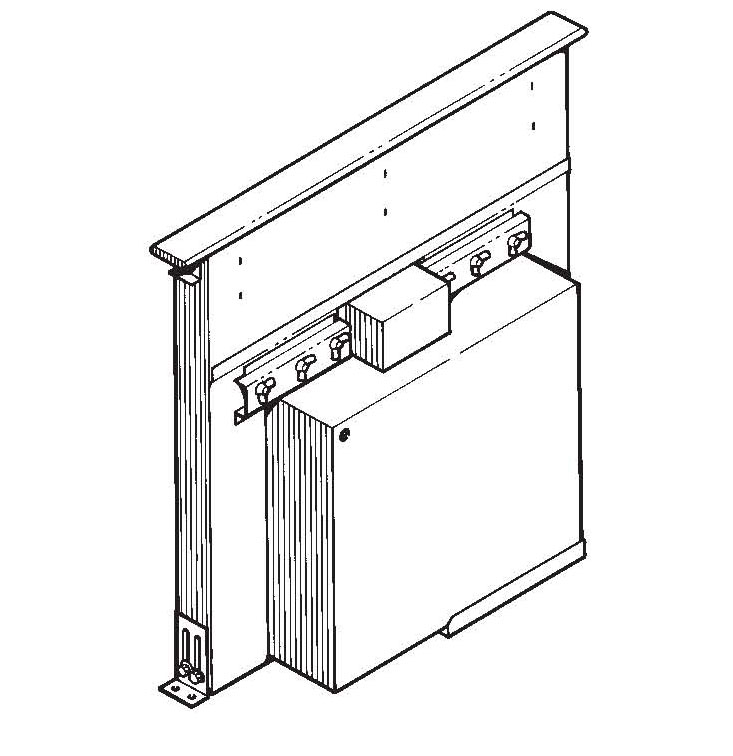

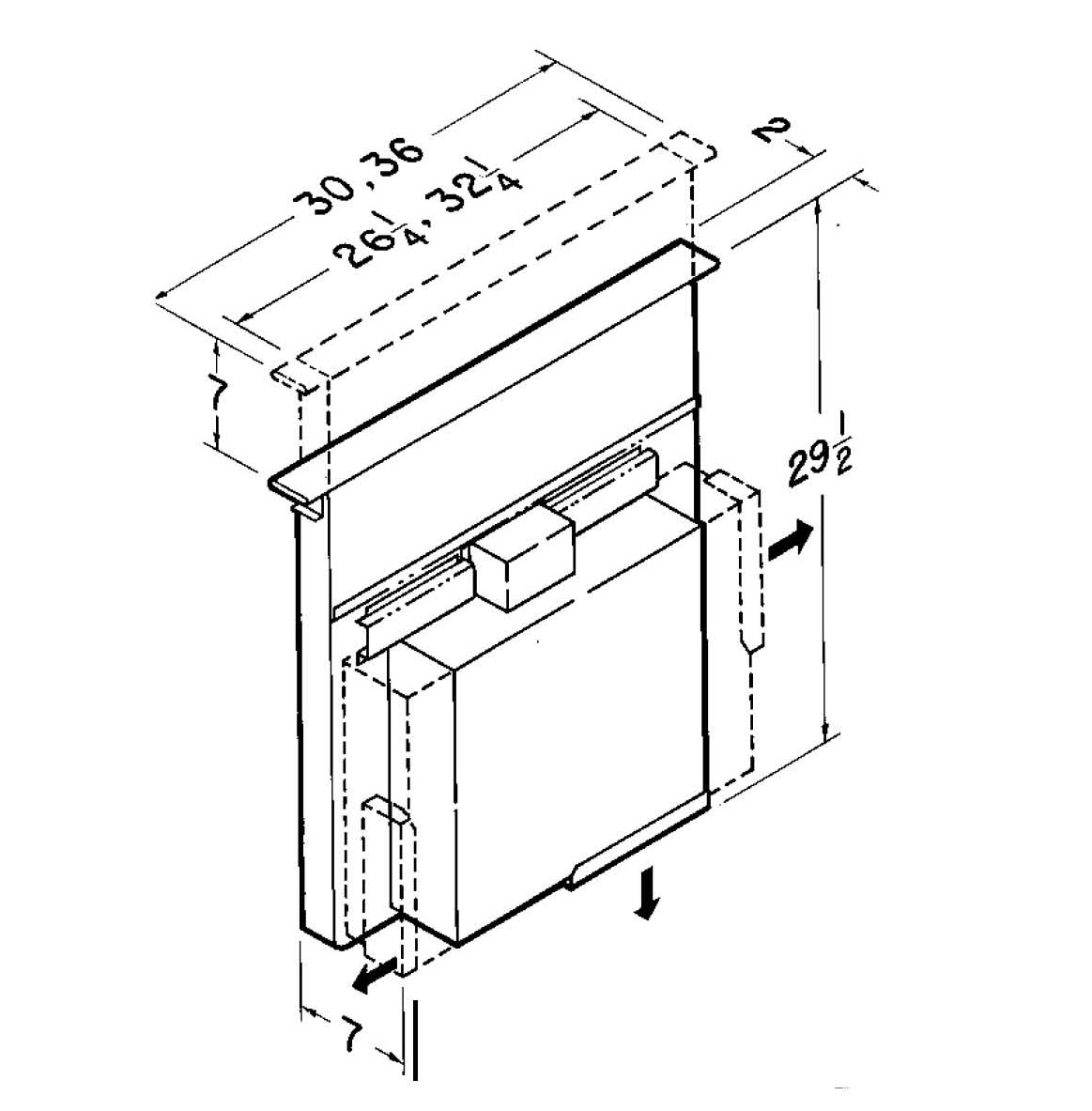

  273603 New Production Complete 36" Stainless Down Draft $923.65
  273623C Optional Black Cover 36" $73.72
  273601C Optional White Cover 36"
This product has been discontinued
  S99111236 FINGER TOUCH BUTTON COVER - WHITE 1" X 1" SQUARE $33.84
  S99111235 FINGER TOUCH BUTTON COVER - BLACK (REPLACES GREY) 1" X 1" SQUARE $27.26
  S99111230 FINGER TOUCH BUTTON COVER - BISCUIT- 1" X 1" SQUARE $33.84
  S97011326 CHIMNEY ASSEMBLY WITH SLIDE- 2736 $130.52
  S99100545 FOAM STRIP - 2736 $27.26
  S97009787 ALUMINUM FILTER SET (3 7/8 x 11 & 3 78 x 13 3/8) $33.84
  S99080362 MOTOR WITH CAPACITOR $560.24
  S98008169 AIR BOX COVER $80.60
  S98008185 AIR BOX OPENING COVER- 2736 $11.39
  S97011311 COMPLETE BLOWER ASSEMBLY $484.10
  S99100484 MOTOR ISOLATOR (3 REQUIRED)
This product has been discontinued
  S97010992 DOWN DRAFT HOUSING- 2736 $203.31
  S97011259 RIGHT SIDE TOP BRACKET FOR TOP COVER $33.84
  S99271000 CAPACITOR
This product has been discontinued
  S97011260 LEFT SIDE TOP BRACKET FOR TOP COVER $33.84
  S99020247 BLOWER WHEEL $124.08
  S97011238 SWITCH ASSEMBLY, UP/DOWN $33.84
  S99150491 SCREWS USED TO ATTACH SIDE & SWITCH BRACKET TO TOP COVER / CHIMNEY ASSEMBLY - #8-18 x 3/8" - 6 REQUIRED $18.00
  S99260491 LOCK NUT FOR FAN SPEED SWITCH - 3/8" -32 $27.26
  S97010714 SPEED CONTROL $117.50
  S99360165 KNOB FOR SPEED CONTROL $27.26
  S99360165 KNOB FOR FAN SPEED CONTROL SWITCH $27.26
  S99150488 SCREW USED TO ATTACH SWITCH COVER TO SIDE OF CHIMNEY- #8-18 x 1/2" - 2 REQUIRED $27.26
  S97011927 SPEED CONTROL WITH UP/DOWN SWITCH $153.22
  S97009972 LOWER MICRO SWITCH ASSEMBLY $59.22
  S99710032 PLASTIC SPACER - 3 REQUIRED $27.26
  S98008150 SCROLL BOX COVER $62.71
  S99080295 GEAR MOTOR $92.00
  S99080590 GEAR MOTOR $171.08
  S99380633 U BOLT $27.26
  S99260437 NUT FOR U BOLT - 2 REQUIRED $0.72
  S97011500 GEAR MOTOR BRACKET $50.76
  S99160225 SCREW USED TO ATTACH GEAR MOTOR TO BRACKET- #8-32 x 1/2" - 4 Required $0.72
  S97011443 GEAR MOTOR COVER $27.26
  S97010993 CORD $39.48
  S99110850 SLIDE STRIP $27.26
  S99170245 SCREW USED TO ATTACH GEAR BOX COVER &AIR BOX COVER TO DOWN DRAFT HOUSING - #8-18 x 3/8" - 19 Req. $18.00
  S98007642 BACK-UP PLATE FOR U-BOLT $27.26
  S97011323 TOP, STAINLESS $85.54
  S98008159 LEG SUPPORT $27.26
  S97011450 TOP, BLACK $128.78
  S99150536 SCREW USED TO ATTACH LEVELING LEG TO DOWNDRAFT HOUSING - 1/4" - 20 x 5/16" - 5 REQUIRED $27.26
  S97011448 TOP, WHITE $144.76
  S99250927 WASHER FOR LEVELING LEG SCREW - 1/4" $18.00
  S99110881 INSTALLATION TEMPLATE $27.26
  S97011305 PARTS BAG $27.26
  S99100544 Foam Seal $19.80
  S99090905 CAP $46.06
