Broan 2230 30" Whv - Direct Drive Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 2230 30" Whv - Direct Drive Parts

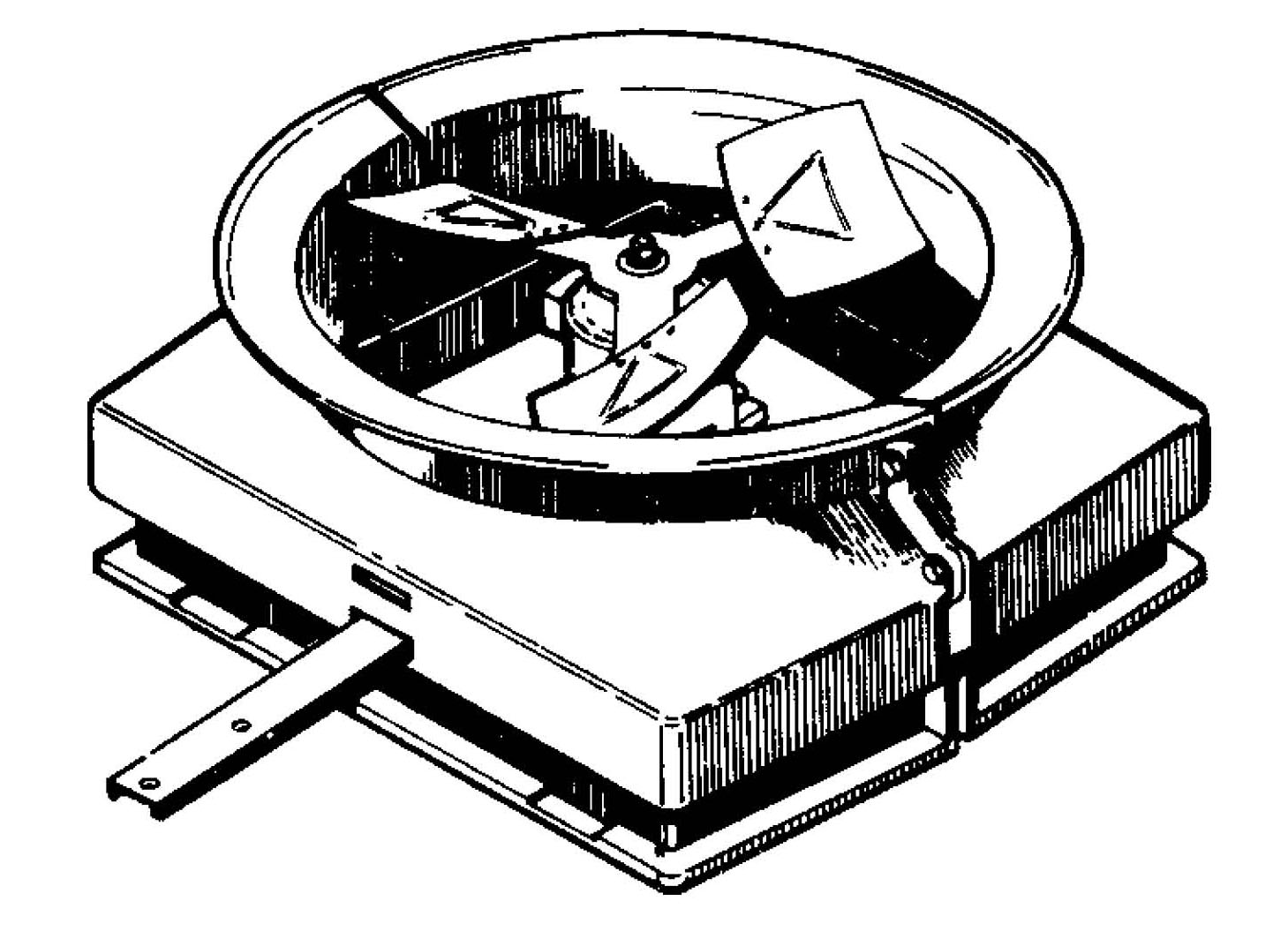

Broan 2230 30" Whv - Direct Drive Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
-S99110654 WHITE PLUG .312 DIA HOLE $0.70
-S99130055 SHROUD HALF $43.22
-S97007412 PULL CHAIN SWITCH ASSEMBLY
-S98006755 SHROUD MTG PLATE WHV $0.68
-S97008206 SHROUD BRACKET ASSEMBLY W $2.38
-S98006717 MOTOR MOUNTING RAIL $9.11
-S97011608 CAPACITOR $24.98
-S99100440 RAIL MTG GROMMET F WHV $1.21
-S99300366 SHUTTER BLADE (8 - REQUIRED) $5.35
-S98006737 TIE ROD (3 HOLES) $1.03
-S99110971 CAPACITOR BRACKET $2.23
-S97008355 PARTS BAG $20.95
