Broan 2224 24" Whv - Direct Drive Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

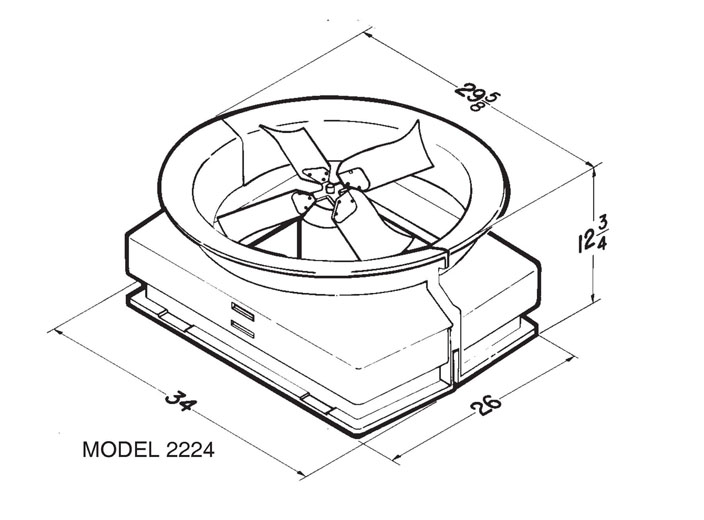

Broan 2224 24" Whv - Direct Drive Parts
Broan 2224 24" Whv - Direct Drive Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
-S99080214 MOTOR
-S99020182 BLADE
-S99110654 WHITE PLUG .312 DIA HOLE $0.70
-S99130054 SHROUD HALF $33.91
-S98006755 SHROUD MTG PLATE WHV $0.68
-S98006717 MOTOR MOUNTING RAIL $9.11
-S97011608 CAPACITOR BOX $24.98
-S98006737 TIE ROD (3 HOLES) $1.03
-S99110971 CAPACITOR BRACKET $2.23
-S97008355 PARTS BAG $20.95
