Broan 190 High Capacity Wall Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 190 High Capacity Wall Heater Parts

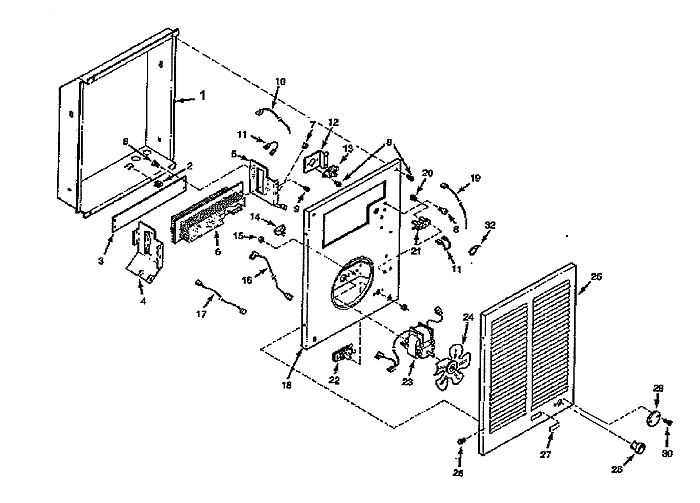

Broan 190 High Capacity Wall Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  192 New Complete Production (will not fit into existing housing) g16 3/8w x 20.25 rgh16.25x20 240v 2000watts $376.40
  S93150462 SECURITY COVER MOUNTING SCREW - #8-18 X 5/8" $33.84
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
3 S98006990 ELEMENT CRS SPT F/VEST HTR $4.05
4 97008769 ELEMENT BRKT ASSY 190 SERVIC $11.14
5 98006995 ELEMENT BRACKET F/2KW VES HT TS $6.41
6 S99270722 HEATER ELEMENT F/VEST190
This product has been discontinued

7 S99400061 BUSHING HEYCO SPLIT $1.75
10 S97008689 WIRE ASSY RED PWR-HEATER $1.33
11 S97008690 WIRE ASSY BLACK JUMPER-HTR $27.26
13 S97013945 THERMAL OVERLOAD ASSY ( #'S 12 & 13) $42.30
14 S93270619 WIRE HARNESS POLYCLAMP $0.68
16 S97008693 WIRE ASSY BLK HTR TSTAT $2.03
17 S97008687 WIRE ASSY BLACK-FAN DELAY $1.87
19 S97008691 WIRE ASSY BLACK PWR-8.5N
This product has been discontinued

21 S99270720 TERM BLK $1.87
22 S99030191 THERMOSTAT F/WALL HTR HPS-21 $33.84
23 S99080249 MOTOR F2 & 3KW VEST HTR MODELS 190, 192, 194 $82.80
24 S99020255 BLADE,PLSTC F/190 HTRS $27.26
27 S99090683 GRILLE LOGO F/VEST HTR $23.40
28 S99360135 KNOB F/WALL HTR $27.26
18 S97008683 MOTOR MOUNTING BRACKET & PLATE $40.43
29 S99110687 SECURITY CVR F/VEST HTRS $27.26
26 S99170245 GRILLE MOUNTING SCREW - #8-18 X 3/8" $18.00
