Broan 170 Wall Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 170 Wall Heater Parts

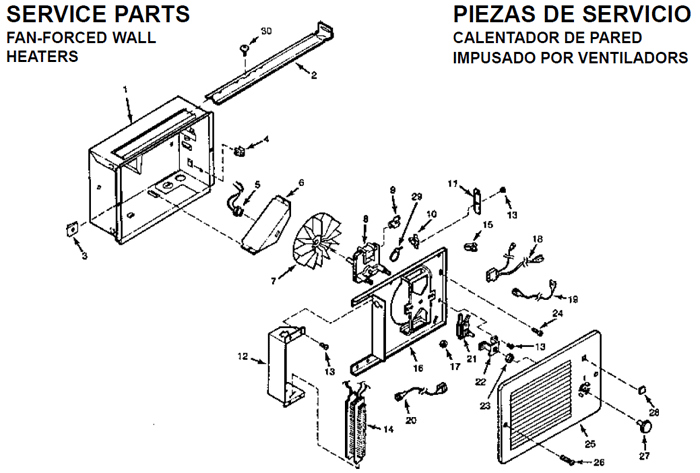

Broan 170 Wall Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
notshown 170 COMPLETE New 170, May not fit into old housing 12 1/4 X 9 1/2 X 1/2 $188.00
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
0 87W Line Voltage Thermostat - White $42.33
  84 Surface Mount Box
This product has been discontinued
  S97018522 PARTS BAG $33.84
1 S97008681 HOUSING $59.22
2 S98003036 HOUSING MOUNTING BRACKET $27.26
5 S97005422 RECEPTACLE
This product has been discontinued
6 S98006975 ELEC OB SIDE $27.26
7 S99020130 BLOWER WHEEL PLASTIC 5 FIN $27.26
8 S99080248 MOTOR 120, 124, 170 & 174 $43.24
8 S97009807 HEATER/FAN ASSM 170 $247.22
8 S97009808 HEATER/FAN ASSM 174 $235.94
8 S97009809 HEATER/FAN ASSM 178 $186.12
8 S99080252 MTR F/2KW 240V WALL HTR MODELS 128 & 178
This product has been discontinued
9 S99270735 61765-2 V-STYLE TAB ADAPT $4.36
10 S99030194 THERMO OVRERLOAD $27.26
11 S99271091 THERMO SWITCH $27.26
12 S98006974 ELEMENT MOUNTTING BRACKET
This product has been discontinued
13 S99150491 OVERLOAD & GUARD MOUNTING SCREW - #8-18 X 3/8 $18.00
14 S99270725 WALL HTR ELEMENTM MODELS 124 & 174 $70.50
14 S99270741 ELEMENT 120 & 170 (120V) $59.22
14 S99270742 ELEMENT 2KW HEATER MODELS 128 & 178 (240V) $42.30
16 S97008682 MOTOR MOUNTING BRACKET & PLATE $10.55
15 S93270619 WIRE HARNESS POLYCLAMP $0.68
18 S97008675 PLUG $33.84
19 S97008677 WIRE $27.26
20 S97008678 OVERLOAD WIRE $27.26
21 S99030191 T-STAT WALL $33.84
22 S98006973 THERMO BRKT $27.26
22 S99150491 THERMOSTAT BRACKET MOUNTING SCREW $18.00
23 S99260464 LOCK NUT FOR THERMOSTAT SWITCH $27.26
25 S97014809 Chrome Grill 12 1/4 X 9 1/2 X 1/2 $73.96
25 S98006970 OFF WHITE GRILLE METAL 12 1/4 X 9 1/2 X 1/2 $84.60
26 S99150528 8-18X1.25 OV HD WHT SC (2 REQUIRED) $33.84
27 S99360135 GRAY KNOB $27.26
28 S99090681 GRILLE LOGO F/BRN WALL HTR $27.26
  170FT Finish Pack use w/ 171H
This product has been discontinued
  171H Finsh Pack Housing use w/ 170FT
This product has been discontinued
