Broan 167F Wall Heater W/Thermostate

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

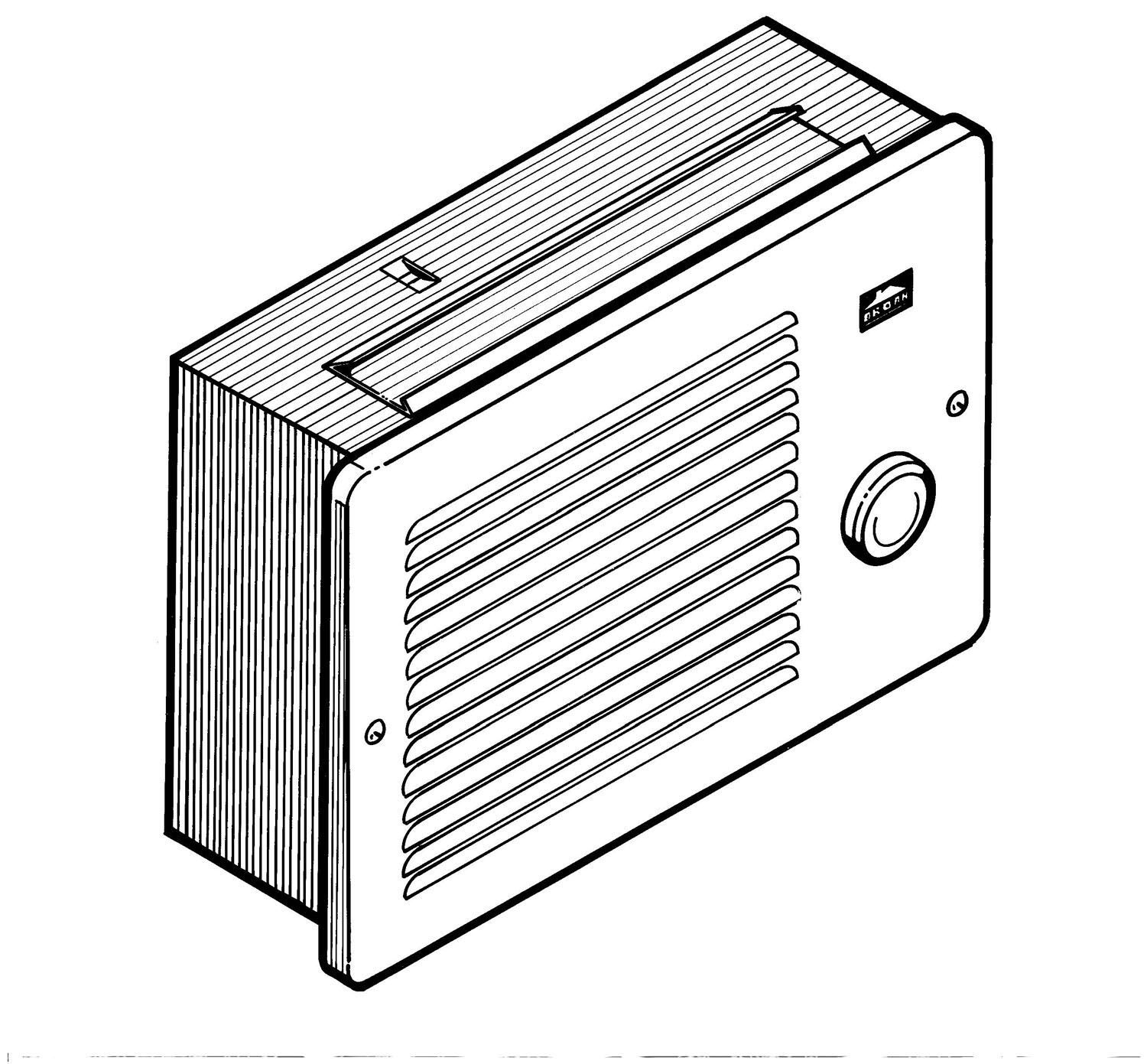

Broan 167F Wall Heater W/Thermostate

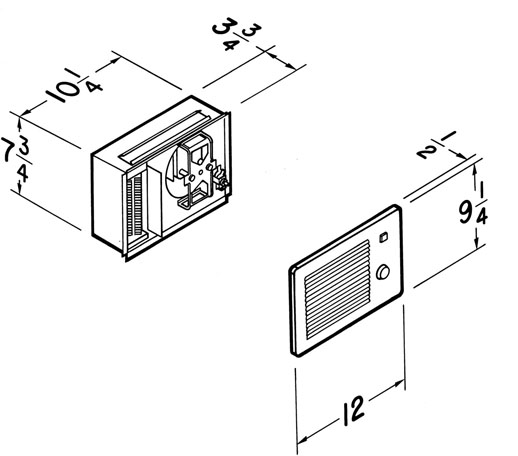

Broan 167F Wall Heater W/Thermostate breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 New Part If parts are not listed they are no longer available $0.00
-S99080276 MOTOR $24.80
-S99020130 WHEEL $7.42
-S99270757 ELEMENT $32.58
-S97009806 HEATER/FAN ASSEMBLY $106.85
-S98003036 HOUSING MOUNTING BRACKET- 2 REQUIRED $1.03
-S99030191 THERMOSTAT SWITCH - 167FT $12.31
-S97008717 THERMOSTAT SWITCH ATTACHED TO BRACKET - 167FT $14.67
-S99360135 KNOB - GREY- 167FT $4.37
-S99030194 THERMAL OVERLOAD $7.63
-S98006970 GRILLE,WHITE $37.33
-S99090681 GRILLE LOGO $0.85
-S99150528 GRILLE SCREW,WHITE - 2 REQUIRED $0.68
 S97008682 MOTOR MOUNTING BRACKET & PLATE $10.55
 S97008675 MOTOR WIRE HARNESS $4.21
 S98006974 ELEMENT MOUNTING BRACKET $4.55
 S99271091 THERMAL OVERLOAD GUARD $0.88
 S99150491 OVERLOAD & GUARD MOUNTING SCREW - #8-18 X 3/8 $0.72
 S97008678 OVERLOAD WIRE ASSEMBLY $1.06
 S98006975 WIRING COVER $1.57
 S97005422 RECEPTACLE WIRE HARNESS $3.72
 S97018522 PARTS BAG $4.19
