Broan 157 Suface-Mount Ceiling Heater Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 157 Suface-Mount Ceiling Heater Parts

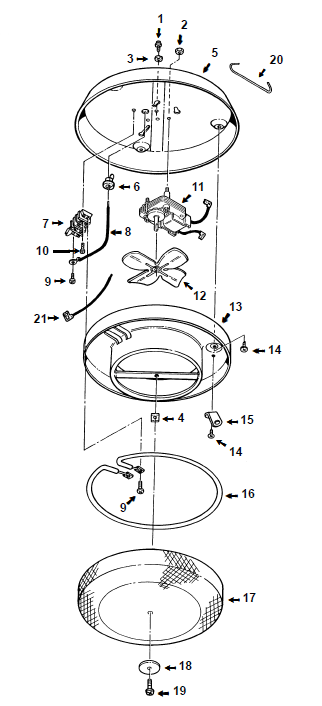

Broan 157 Suface-Mount Ceiling Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown 157 Complete Surface Mount Heater 1250 Watt New (10 7/8 RND 2 5/8 THICK) $119.20
  S25045-00 Grille $51.70
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99150611 Ground Screw $1.22
2 S04200-14 Twin Serr. Hex Nut-
This product has been discontinued

3 05100-13 Washer - Brass Cup
This product has been discontinued

4 04126-00 Clip Tinn. C17184-8-4
This product has been discontinued

5 S98008740 Ceiling Pan $33.84
6 02159-00 Bushing
This product has been discontinued

7 S99270721 Term Blk F/Mod 156 HTR $27.26
8 02144-01 Lead 12 Blck - 7312/45/15 $1.38
9 S99160313 #6-32 X 1/4 Pan Hd Screw $0.53
10 99150527 8-18X.500 Ph Pan Hd Bt $0.64
11 S99080437 Motor $34.78
12 S06116-00 Blade Ac2300/154 $27.26
13 S98008741 Reflector $26.66
14 S99150478 Scr 8-18X.375 Ph Tr Hd Bp(T) $27.26
15 S98008742 Element Support $1.87
16 S99270744 Element Solid F/156-C $42.30
17 S25045-00 Grille Metal 11X2 3/4 $51.70
18 S99090680 Nameplate F/154/157 HTR $27.26
19 S99150491 Scr 8-18X.375 Sr Ph Pan H(T) $18.00
20 S06317-00 Hook Installation Aid $27.26
21 S97013088 White Wire Assembly $1.76
22 S99271125 Thermolink $27.26
