Broan 12C Utility Wall Fan 10" Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 12C Utility Wall Fan 10" Parts

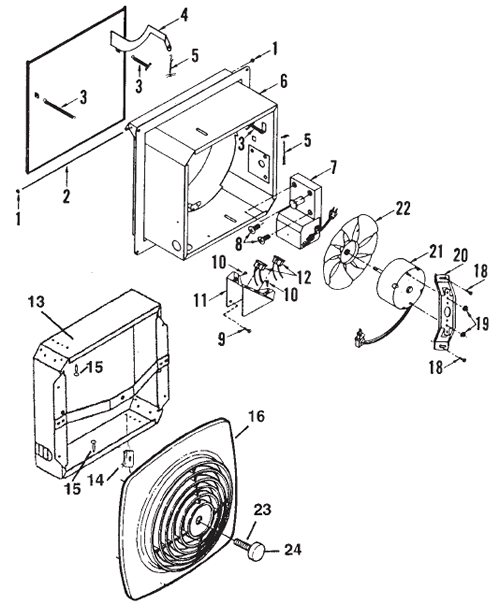

Broan 12C Utility Wall Fan 10" Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  12C Brand New Complete 12C
This product has been discontinued
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S99420478 Pushnut $27.26
2 S98006073 Door Hinge Pin $27.26
3 S99140102 Door Spring $27.26
4 S97007004 Door $84.60
5 S97000015 Chain, Hook With Pin. $27.26
6 S97000018 Housing Assembly $115.45
7 S97008639 Gearbox Motor 12C, 12C-A, B, C,
This product has been discontinued
7 S99080538 Gearbox Motor Only 12C-D,
This product has been discontinued
7 S97000073 Gear Box With Motor 12C, 12C-A, B, C,
This product has been discontinued
7 S97015620 Gearbox With Motor 12C-D,
This product has been discontinued
8 S99160380 Gearbox Motor Mounting Screw $3.60
11 S98006051 Outlet Box
This product has been discontinued
12 S99270982 Receptacle - Black $18.00
13 S97015619 Inner Housing
This product has been discontinued
13 S97007100 Outter Housing
This product has been discontinued
16 S97007378 Metal Grille A version with 2 mounting Screw (2 left) 10.5 square
This product has been discontinued
16 S97011851 Grille Plastic- 12C-B, Center Mount $52.64
16 S97013825 Metal Grille 12Cmg-A Center Mount 10.5 Square
This product has been discontinued
16 S97014186 Grille Plastic - 12C-A Replaces 2 Screw Mount
This product has been discontinued
19 S99260425 Motor Mounting Nut $2.40
20 S99150479 Motor Bracket Mounting Screw $27.26
20 S98006066 Motor Mounting Bracket $27.26
21 S99080181 Fan Motor Modifed 1" 5/16shaft-Dshaped, CW All Units $89.14
22 S99020271 Blade 12C-C, D $27.26
22 S99020166 Blade 12C-A, B $27.26
23 S99420579 Grille Screw- 12C-B, C, D $27.26
23 S99010271 Alluminum Filter 10.5 round $27.26
24 S97011918 Grille Knob - 12C-B, C, D $18.00
24 S99160323 Grille Mounting Screw - 12C-A - 2 Req. $27.26
  S97011881 Parts Bag $27.26
