Broan 113023 30 Inch Hideaway Range Hood

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 113023 30 Inch Hideaway Range Hood

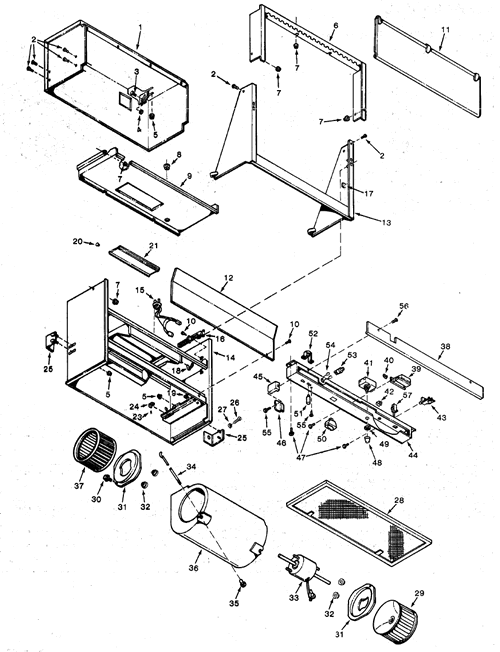

Broan 113023 30 Inch Hideaway Range Hood breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S98006352 Filter Retaining Clip - 2 Required $1.21
 S97009817 Light/Switch Bar Housing Only $30.38
 S99150491 Screw Used to Attach Light/Switch Bar Cover to Light/Switch Bar Housing - #8-18 x 3/8" - 2 Required $0.68
 S99260491 Lock Nut for Speed Control Switch - 3/8" $0.68
 S98005860 Retainer for Lampholders - 2 Required $0.68
 S99160319 Screw used to Attach Lampholder Retainer to Light/Switch Bar - #6-32 x 3/8" - 4 Required $0.68
 S99270650 Base for FS-2 Fluorescent Starter $4.23
 S97009818 Wire Harness that Connects Light/Switch Bar to Junction Box $39.01
 S99100491 Rubber Motor Mount / Isolator Bushing - 4 Required $2.18
 S99170245 Screw used to Attach Motor Retaining Ring / Cup to Blower Scroll Housing - #8-18 x 3/8" - 4 Required $0.68
 S97007314 Blower Scroll Housing Only - Does Not Include Motor or Blower Wheel $27.18
 S97007406 Blower Housing Wiring Harness $13.01
 S99150478 Screw used to Attach Blower Compartment Cover to Lower Housing Assembly - #8 x 3/8" - 7 Required $0.68
 S99260488 Lock Nut used to Attach Frame Assembly to Housing - #10-24 - 20 Required $0.68
 S99100438 Door Pad - 2 Required $0.67
 S93100402 Door Bumper - 4 Required $0.68
 S98006316 Blower Compartment Cover $14.00
 S99400055 Bushing $0.85
 S98005221 Damper Flap $1.51
 S97010327 Complete Blower Assembly (Includes Key Nos. 11 thru 15, 18 & 19) $129.29
20S99100379 Damper Rod Bushing 2-Required $0.68
21S97006078 Damper Assembly $17.59
28S97007725 Aluminum Filter 8-7/8" x 23-7/8" $20.95
29S99020139 Blower Wheel CCW $11.99
31S98005212 Motor Retaining Ring 2-Required $3.06
32S97010902 Rubber Motor Mount - Contains 2 $4.23
33S97010736 Motor $84.51
34S99420464 Blower Mounting Rod $2.70
35S99260476 Mounting Rod Nut $1.33
37S99020138 Blower Wheel CW $12.31
39S97007428 Ballast Transformer $17.39
41S99030132 Fan Speed Switch $27.00
43S97007424 Heat Sentry Thermostat $13.46
45S99270550 Fluorescent Lampholder/Socket * $2.38
48S99360118 Knob for Speed Switch $1.73
50S99030165 Light Switch $2.38
51S99270553 Fluorescent Starter FS-2 $5.09
53S99030033 Momentary Contact Switch $4.37
