Broan 112 Kickspace Heater/Thermostat Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 112 Kickspace Heater/Thermostat Parts

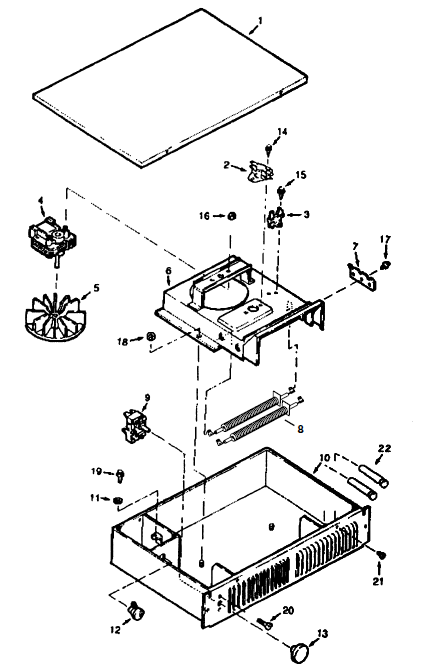

Broan 112 Kickspace Heater/Thermostat Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  112 112 New production complete $249.82
  ––– FRONT GRILL IS NOT AVAILABLE $0.00
1 S99522899 Top Cover, White F/112-114 Ks/H $27.26
2 S99521762 Thermal Overload 112-A, 114-A $15.03
2 S99522400 Thermal Overload, 112-B,114-B $46.06
3 S99521763 Thermal Fuse F/112 $27.26
4 S99521765 Motor F/112 Heater $76.14
5 S99020130 Blade/ Wheel 5 Plastic Fin $27.26
6 S99521760 Mtr Plate F/112 Htr $40.42
7 S99521761 Element Retainer F/112 $27.26
8 S99271288 Heater Element (2 Required) $67.68
9 S99521767 Thermostat F/112 Htr $89.30
13 S99521769 Gray Knob F/112 Htr
This product has been discontinued

22 S99522782 Alarm Light-Ks/H Nordyne P/N 152 $9.18
  S99270735 Double Spade Terminal $4.36
  S97014272 Red Jumper Wire $27.26
