Broan 1055 Trash Compactor Parts

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 1055 Trash Compactor Parts

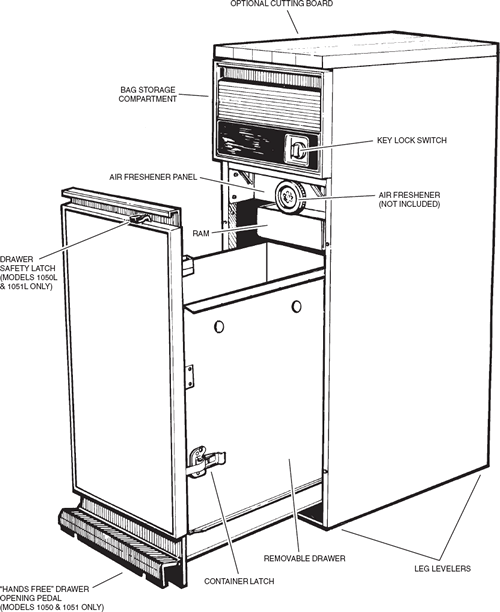

Broan 1055 Trash Compactor Parts breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S93620008 Compactor Bag For 12" Wide Compactor (10-Pack) $17.60
 S91009324 Gear Box Service Kit $58.10
 S93110936 Key,Knob Type (Black) $4.23
 S93250907 Washer Located Next To Thrust Bearing $0.88
 S91009945 Reversible Door Panel - Black/ Almond $22.27
 S91009957 Reversible Door Panel - White/ Black $24.74
 S93470012 Roller $4.68
 S93260447 Roller Mounting Nut $0.80
 S93380623 Leveling Leg $1.26
 S93110447 Grey Pad For Level Leg $0.88
 S93380619 Screw Kit $38.60
 S92008438 Trunnion Nut Retaining $2.80
 S93110499 Caddy Bag $14.44
 S91013900 Complete Power Unit
 S93150506 Trunnion Retainer Mounting Screw - #12- 24X 5/16" $0.80
 S93180002 Gearbox Mounting Screw - #10-32 X 1/2" $0.80
 S93260457 Gearbox Mounting Nut - #10-32 $0.80
 S93450006 Chain $16.60
 S93110434 Big Gear/ Sprocket- Black Plastic- 50 Tooth $7.40
 S93260439 Jam Nut On End Of Main Drive Screw $0.98
 S93250908 Washer Located Behind Jam Nut $0.80
 S93420441 Drive Pin For Main Drive Screw $0.88
 S93250913 Thrust Washer Located Behind Drive Pin $0.80
 S93110458 Plastic Trunnion Bearing Sleeve $5.44
 S93300442 Trunnion Block $25.68
 S91005299 Motor - 1050-A $175.07
 S93840003 Trunnion Nut Die Cast $18.05
 S91009323 Motor 1050-D,E,G,H,J, 1050L-A,B, 1051-D,E,G,H,J, 1051L-A,B, 1052-A,B, 1055-D,E,G,H,J, 1059-A,B, 1170-D $161.08
 S93041411 Cmptr Srv Manual 1050-D,E,F,G; 1051-D,E,F,G; 1055-D,E,F,G; 1170-D $5.36
 S91014197 Upper Limit Switch- 1050-J, 1050L-B, 1051-J, 1051L-B, 1052-B, 1055-J, 1059-B $57.20
 S91012250 Air Scentry Panel With Switch - 1050-H,J, 1051-H, J, 1052-A,B, 1050L-B, 1051L-B, 1055-J, 1059-B $62.28
 S91008920 Interlock Latch Box With Swicth - 1050-A,B,C,E,G, 1051-D,E,G, 1055-D,E,G, 1170-D $24.46
 S91011979 Latch Box - 1050L-A,B, 1051L-A,B, 1055-H,J, 1059-A,B $5.20
 S91016541 Drawer Assembly With Rollers - 1050-A,B,C,D,E,G, 1051-D,E,G, 1055-C,D,H,J, 1170-D, 1050L-A,B, 1051L-A,B, 1059-A,B $206.48
 S91011726 Drawer Assembly With Rollers- 1050-H,J, 1051-H,J, 1052-A,B $136.36
 S93470006 Reverse Thrust Bearing $0.59
 S93100511 Black Rubber Actuator- 1050-H,J, 1051-H,J, 1052-A,B, 1050L-A,B, 1051L-A,B, 1059-A,B, 1055-J $5.89
 S91011634 Door Liner - 1050-H,J, 1051-H,J $45.83
 S91011624 Door Liner - 1052-A,B $51.14
 S91006230 Foot Pedal- Black $21.40
 S93140143 Foot Pedal Springs 1-Required $1.03
 S93110516 Foot Pedal End Cap $1.03
 S93110515 Toe Space Cover Black With Holes For Foot Pedal 1050,1051 $12.32
 S93110514 Toe Space Cover - Black 1050L, 1051L, 1052, 1059, 1055 $12.66
 S93300424 Top Trim - 1052-A,B $13.99
 S93650008 Bottom Door Trim - 1050, 1051, 1055
 S93650041 Side & Top Door Trim - 1050-H,J, 1051-H,J $24.56
 S93300419 Side Door Trim - 1052-A,B $15.52
 S93300420 Bottom Door Trim - 1052-A,B $8.78
 S99230342 Rivets For Door Trim (6 Required) $0.80
 S91011367 Control Panel Assembly Black- 1050 (Includes Insert And Key) $44.52
 S91011368 Control Panel Assembly White - 1051 (Includes Insert And Key) $44.52
 S93110694 Control Panel - 1052 $38.60
 S93110927 Control Panel - 1055 $25.31
 S93090906 Control Panel Insert- 1055 $7.92
 S93110933 Control Panel - 1059 $25.31
 S93090945 Control Panel Insert - 1059 $10.39
 S93110572 Door Trim For Storage Compartment Black 1050, 1050L $13.22
 S93110698 Door Trim For Storage Compartment White 1051, 1051L $14.04
 S92007052 Storage Compartment - Black $38.66
 S91009863 Compactor Shortening Kit Converts 1050 To Low Profile $48.94
