Broan 103023 Custom Range Hood Kit

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 103023 Custom Range Hood Kit

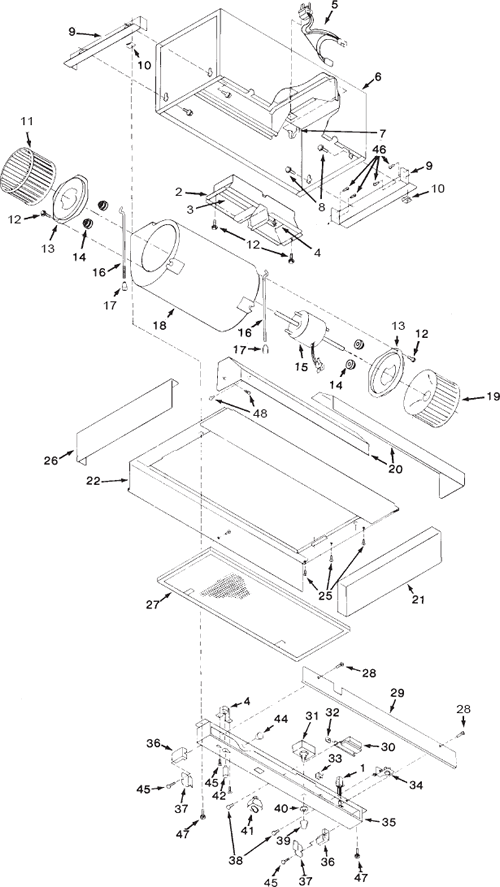

Broan 103023 Custom Range Hood Kit breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S99170245 Screw Used To Attach Motor Retaining Ring/Cup To Blower Scroll Housing - #8-18 X 3/8" - 10 Required $0.72
 S93270619 Plastic Harness Clip For S97007406 Wiring Harness $0.72
0S97007489 Parts Bag $7.94
2S97006078 Damper Assembly $18.29
3S98005221 Damper Flap Only $1.57
5S97007406 Blower Housing Wire Harness - Connects Grounded Plug To Wiring Box $13.54
6S97007487 Blower Housing -Inside Box That Blower Assembly Mounts Onto $74.29
9S97007488 Blower Housing Mounting Bracket $8.95
11S99020138 Blower Wheel Cw $12.80
12S99100379 Damper Bushing- 2 Required $0.72
13S98005212 Motor Retaining Ring 2-Required $3.19
14S97010902 Rubber Motor Mount- Contains 2 $4.39
15S97010736 Motor - Double, 2.1 Amps $87.89
15S97010327 Complete Blower Assembly (Includes Key Nos. 11 Thru 15, 18 & 19) $134.46
15S99100491 Rubber Mounts For Motor 4 Requiredsold Each $2.27
16S99420464 Blower Mounting Rod $2.81
17S99260476 Mounting Rod Nut $1.39
18S97007314 Blower Scroll Housing Only - Does Not Include Motor Or Blower Wheels $28.26
19S99020139 Blower Wheel CCW $12.47
20S97007486 Liner Nose Piece (2 Required) $16.83
21S98006455 R.H. Liner Side Piece $16.52
22S97013583 Liner Top Piece (Includes Filter Clips) $61.97
22S97009790 Liner Extension Set For 36" Hoods (Optional) (Replaces Key Nos. 21 & 26) $27.41
25S99150470 Screw Used T0 Attach Top Liner Piece - #8-18 X 3/8" - 13 Required $0.72
26S98006454 L.H. Liner Side Piece $16.52
27S97007725 Aluminum Filter 8-7/8" X 23-7/8" $23.28
30S97007428 Ballast Transformer $18.09
31S99030132 Fan Speed Switch $28.08
34S97007424 Heat Sentry Thermostat $14.00
36S99270550 Fluorscent Lampholder/Socket * $2.47
38S97009818 Control Box Wiring Harness, Connects Wiring Box To Light/Switch Bar $40.57
39S97016970 Light Switch Black (Pack Of 2) $1.78
39S99360118 Knob For Speed Switch $1.80
40S99260491 Hex Lock Nut For Fan Speed Control Switch 3 $0.72
41S99030310 Obsolete Light Switch - Black, Replaced By 97016970 $0.00
42S99270553 Fluorescent Starter FS-2 $5.29
43S97009816 Light/Switch Bar (Includes Bulb Holder,Ballast, Fan Control, Light Switch $137.66
43S99270650 Base/Bracket For Fluorescent Starter $4.39
43S98005860 Retainer To Hold Lamp Holder To Light/Switch 2 Required Sold Each $0.72
43S99160319 Screw Used To Attach Lamp Holder To Light 4 Required Sold Each #6-32X3/8 $0.72
44S97009817 Housing Only For Lights/Switch Bar $31.61
45S97007726 Cover Only For Light Switch Bar $15.08
46S99150491 Screw Used To Attach Cover To Light/Switch#8-18X3/8 2 Required Sold Each $0.72
46S99260473 Sheet Metal Nut For Blower Box Mounting Bracket- #10-24 - 2 Required $0.72
47S99160356 Screw Used To Attach Light/Switch Bar To Top Liner #10-24X3/8 2 Required $0.70
