Broan 100HFL Bathroom Exhaust Fan With Heater Parts

Listed below are the parts available for this model.

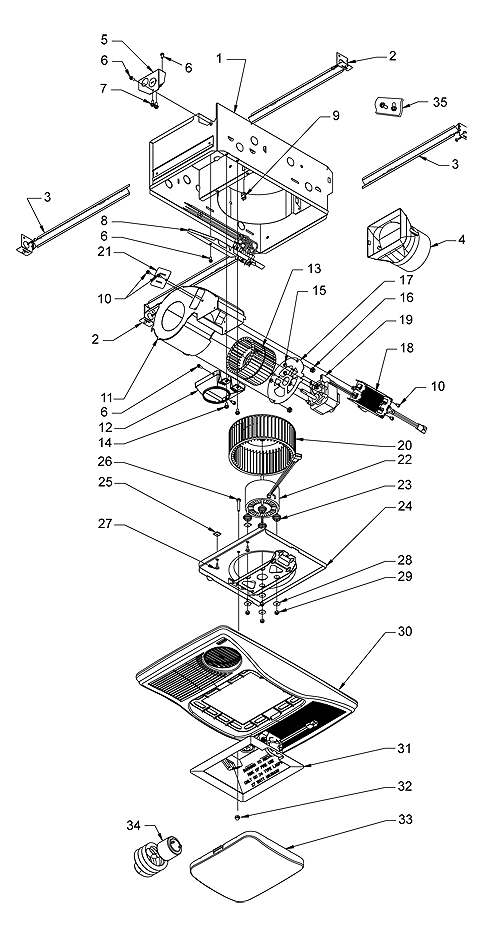

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

If parts are not listed, they are no longer available

Broan 100HFL Bathroom Exhaust Fan With Heater Parts
Broan 100HFL Bathroom Exhaust Fan With Heater Parts breakout large
ImagePart KeyPart NumberDescriptionUnit PriceDesired Quantity
  66W Switch White 3 Function Fits Into a Single Gang Box $43.42
  BHFLED110 New Production Unit (16" x 10-1/4" x 5-7/8" Rough in size) (Grill Cover dimension 17 3/4" x 11 3/4") 110CFM 2.0 sones 1500watt heat $307.91
  S99150583 Grille Mounting Screw $18.00
  S99260425 Motor Mounting Nut (2 Required & Sold Individually) $2.40
1 S97017572 Housing $37.12
2 S97017712 Right Slide Hanger Bar $27.26
3 S97017711 Left Slide Hanger Bar $27.26
4 S97016449 4" Damper/Duct Connector $27.26
5 S98010407 Electrical Knockout Panel $27.26
8 S97017713 Wire Panel $27.26
11 S97017609 Heater Scroll $59.22
12 S98010405 Transition $27.26
13 S99020294 Heater Wheel $59.22
17 S98010409 Heater Motor Bracket $5.06
18 S97020888 Heater Element (replaced 97016565) $51.70
19 S99080606 Heater Motor
This product has been discontinued
11 S97020890 Heater Scroll Assembly (Keys 6,10-19,21) $165.44
20 S99020293 Fan Wheel
This product has been discontinued
21 S98010089 Heater Mounting Bracket F/US-HFL $33.84
22 S99080602 Fan Motor
This product has been discontinued
23 S99100491 Rubber Motor Isolator, 4-Required $27.26
24 S97017606 Partition Assembly $27.26
30 S97017639 Grille Assembly (includes light lens 17.5x11.5)
This product has been discontinued
30 FG110HBS Upgrade Grille/Lens 3 optional Light Color changes (Heater Exhaust Cover Upgrade With Dimmable LED and Color Adjustable CCT Lighting) 17.75" x 11.75" x 3" $103.00
31 S97017687 Reflector Assembly With Ballast $27.26
32 S97005316 Acorn Nut- (For Attaching Grille/Light Reflector) $27.26
19 S97017769 Blower Assembly (Keys 20,22-24,26, 28,29)
This product has been discontinued
33 S99111410 Light Lens (7 1/4 x 8 1/4 x 1) SEE S1102477
This product has been discontinued
34 S99271360 Flourescent Lamp, 27W, 3500K, GU24 $26.59
  S97017739 Parts Bag $27.26
28 S99250959 Fan Mounting Washer $18.00
29 S3150459 Fan Motor Nut $0.82
