NuTone QTNLEDA Bathroom Fan

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

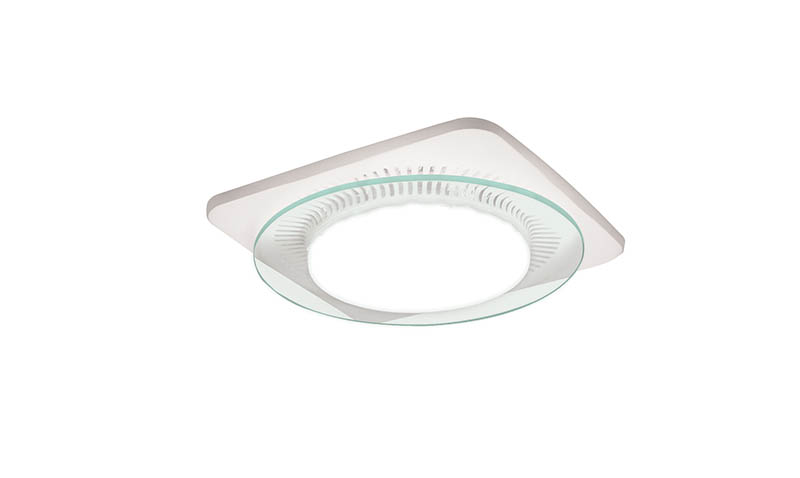

NuTone QTNLEDA Bathroom Fan

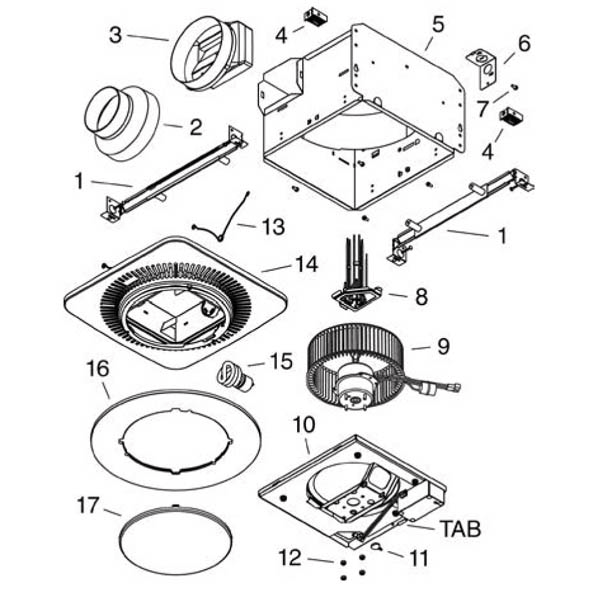

NuTone QTNLEDA Bathroom Fan breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
1S475 Duct Reducer 6" to 4" $5.72
2SQTHB1 Hanger Bar Bracket Kit $17.64
3S97018014 I Joist Spacer Block (Contains 2 Spacers) $1.24
4S97018562 DUCT ADAPTER 6" $8.03
5S99111293 Spacers for Can (need 2) $1.38
6S97016466 Housing or can $25.74
7S98010102 Electrical knockout for Plate for Top Housing $3.42
8S99170245 #8-18 x .375" Screw f/ K.O. Wiring Plate $0.68
9S97018580 Motor and Blower Wheel $41.58
10S99420665 #8-18 x .375" Thumbscrew for Motor Mounting Plate $0.60
11S99260558 Nut to Attach Motor to Mounting Plate 4 Req. $0.54
12S97018578 Blower Assy (includes 9,10,11,12) $150.77
13S97018529 Plate for Motor and Control Assy $85.10
14S99140199 Grille Spring - 2 Required $0.54
15S99271381 GU24 18W Fluorescent Bulb - 2 Required $14.42
16S99111529 Light Lens $11.68
