NuTone QT200 High Capacity Fans
Ventilation Fan For Any Room 250 sq. ft.

Listed below are the parts available for this model.

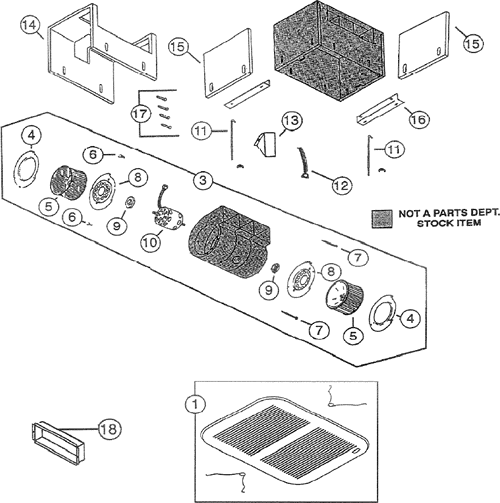

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
NuTone QT200 High Capacity Fans  Ventilation Fan For Any Room 250 sq. ft.
NuTone QT200 High Capacity Fans  Ventilation Fan For Any Room 250 sq. ft. breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 QT200 NEW COMPLETE WILL FIT INTO EXISTING HOUSING $166.59
185668000 GRILLE & SPRING (16 1/2" X 12") $8.41
20447A000 TORSION SPRING SET $2.02
358818000 MOTOR ASSY (Iincludes 4,5,6,7,8,9,10) $222.89
458826000 VENTURI $2.36
558824000 BLOWER WHEEL - Metal, CCW, 5 1/4" x 3" $28.19
558825000 BLOWER WHEEL - Metal, CW, 5 7/8" x 2 7/8" $28.19
865905000 MOTOR PLATE $6.68
919360000 MOTOR MOUNT HEX Jas# 8110181 $5.18
1058822000 MOTOR Only - #JA2M291N, CW, Shaft Size 1 3/8" x 5/16" x 1 3/8" $112.66
1158835000 ROD - CLAMP $3.74
1258723000 PLUG $8.80
1358724000 JUNCTION BOX $2.16
1435729000 INSULATION WRAPAROUND $12.82
1558596000 INSULATION-END $5.09
1658731000 HANGER BRacKeT $6.82
1758597000 RETAINER OIC 1 1/2x 1/2 $0.70
1810940050 DAMPER ASSEMBLY $4.72
