Broan MP280 Top Seller
Multi-Port In-Line Ventilator Fan

Listed below are the parts available for this model.

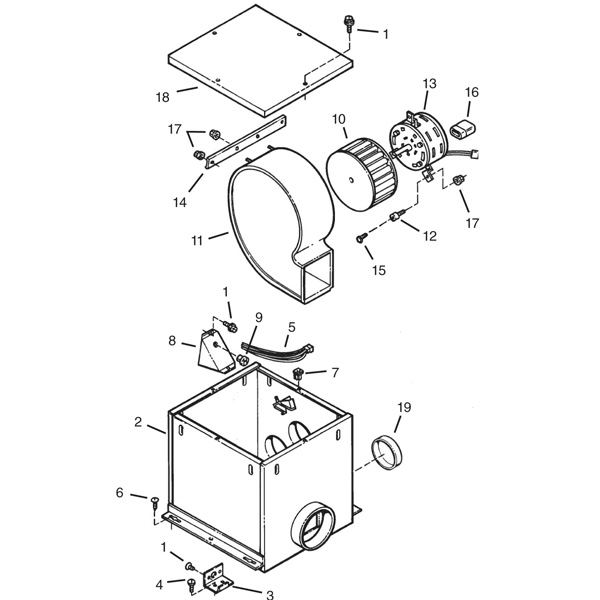

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan MP280   Top Seller   Multi-Port In-Line Ventilator Fan
Broan MP280   Top Seller   Multi-Port In-Line Ventilator Fan breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
97011417 MP280 BLOWER ASSEMBLE $131.32
99170245 Screw, #8-18 x 3/8" $0.76
97011414 MP280 HSG ASSY Motor/Blade/Housing $158.68
98005512 Wiring Adapter Plate $1.34
99150471 Screw, #10-32 x 1/2" Hex Washer Head $0.76
97006081 WIRE HARNESS 365 $7.30
99150591 SCREW 10-16 X .875 PHIL HD $0.76
99420470A White Plastic Grille Nut - 4 Required $0.76
98005513 Wiring Box Cover $1.92
99400035 BUSHING STRAIN RELIEF $0.76
10 97011423 MP280 BLWR WHEEL $40.38
11 97011346 MP280 BLOWER HSG WELDMENT $61.52
12 99100484 Rubber Motor Insolator (3 req. - Includes Key No. 6a) $4.68
13 97011415 MP280 MOTOR $119.90
14 98005405 BLR MTG CHAN 365 $9.00
15 99150536 Screw, 1/4-20 x 5/16" $0.76
16 97011418 MP280 CAPACITOR $8.66
17 99260477 Nut, 1/4-20 Flanged Hex $0.76
18 97011419 MP280 COVER $33.60
19 99110942 PLUG CAP F/MP FANS $2.08
