Broan MP200 Multi-Port In-Line Ventilator

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan MP200 Multi-Port In-Line Ventilator

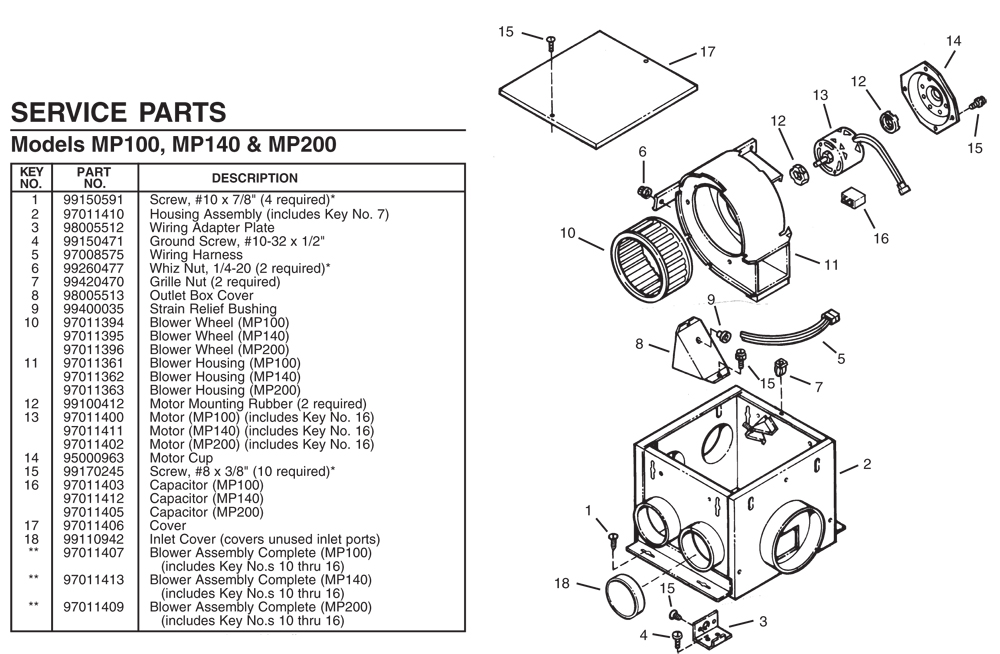

Broan MP200 Multi-Port In-Line Ventilator breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
97011409 SRV SP200 MP200 BLWR ASSY SRV $170.88
99150591 SRV SCR 10-16 X .875 PHIL HD $0.76
97011410 SRV MP HOUSING ASSY F/SERVICE $142.02
98005512 Wiring Adapter Plate $1.34
99150471 Screw, #10-32 x 1/2" Hex Washer Head $0.76
97008575 SRV WIRE HARNESS 360-361 $2.64
99260477 Nut, 1/4-20 Flanged Hex $0.76
99420470 White Plastic Grille Nut - 2 Required $0.76
98005513 Wiring Box Cover $1.92
99400035 SRV BUSHING STRAIN RELIEF $0.76
10 97011396 SRV SP200 MP200 WHEEL F/SERV $28.90
11 97011363 BLOWER HOUSING $0.00
12 99100412 Motor Mounting Rubber - 2 Required $2.42
13 97011402 SRV SP200 MP200 MOTOR F/SERV(M) $114.42
14 95000963 Motor Cup $3.40
15 99170245 Screw, #8-18 x 3/8" $0.76
16 97011405 SRV SP200 MP200 CAP F/SERVICE $4.12
17 97011406 SRV SP & MP COVER F/SERV $26.46
18 99110942 SRV PLUG CAP F/MP FANS $2.08
