Broan 757SN FAN/LIGHT SATIN NICKEL 80 CFM 2.5 SONES

Listed below are the parts available for this model.

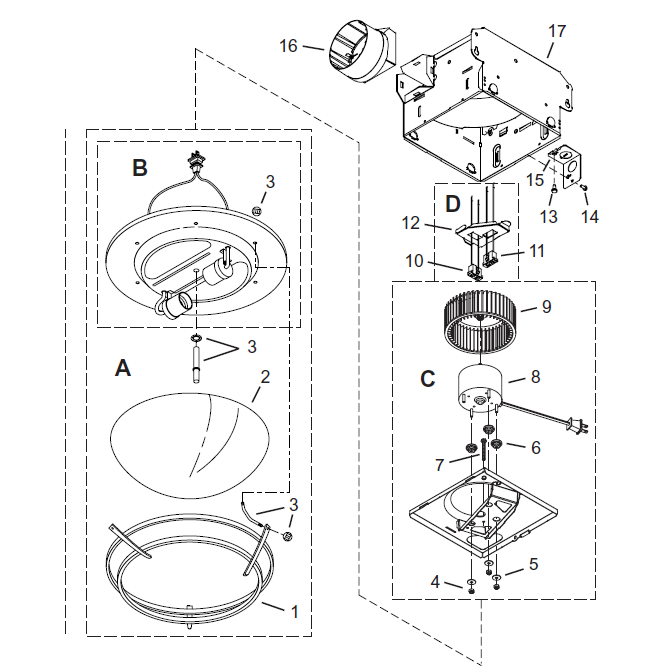

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 757SN FAN/LIGHT SATIN NICKEL 80 CFM 2.5 SONES
Broan 757SN FAN/LIGHT SATIN NICKEL 80 CFM 2.5 SONES  breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
D97015171 Outlet Cover/Wire Panel Assy. (Includes Both Receptacles) $8.69
C97016671 SRV ASSY, BLOWER F/756,757 $54.23
B97016715 SRV ASSY GRILLE PAN F/757SN $40.32
A99525323 SRV ASSY, LIGHT FIXTURE F/757SN $86.17
197016716 SRV ASSY GLOBE TRIM F/757SN $1.58
697016714 SRV ASSY GLASS GLOBE F/757 MODELS $20.02
397016717 SRV ASSY HARDWARE PARTS F/757SN $10.03
699100491 Rubber Motor Isolator, 4-Required $2.18
897016722 SRV ASSY MOTOR F/756, 757 $46.26
999020276 Plastic Blower Wheel $2.84
1099270981 Light Receptacle, White $1.87
1199270982 Receptacle - Black $1.87
1298009612 Outlet Cover/Wire Panel (Without Receptacles) $1.04
1598008868 Electrical Knockout Wiring Plate $2.05
1697014185 4" Damper/Duct Connector $4.41
