Broan 2736 Range Hood

Listed below are the parts available for this model.

Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."

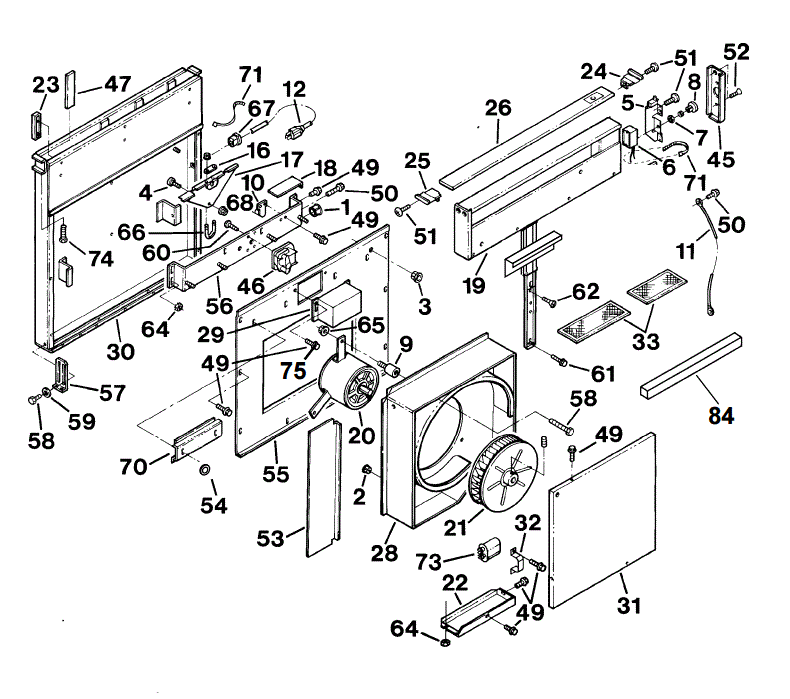

Broan 2736 Range Hood
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
 S97011326 Chimney Assembly with Slide - 2736 $130.52
 S99100545 Foam Strip - 2736 $20.92
 S98008169 Air Box Cover $77.51
 S98008185 Air Box Opening Cover - 2736 $10.96
 S97010992 Downdraft Housing - 2736 $151.78
 S97011259 Right Side Top Bracket for Top Cover $8.78
 S97011260 Left Side Top Bracket for Top Cover $8.78
 S99150491 Screws Used to Attach Side & Switch Bracket to Top Cover / Chimney Assy - #8-18 x 3/8" - 6 Required $0.68
 S99260491 Lock Nut for Fan Speed Switch - 3/8" -32 $0.68
 S99360165 Knob for Fan Speed Control Switch $3.22
 S99150488 Screw Used to Attach Switch Cover to Side of Chimney - #8-18 x 1/2" - 2 Required $0.68
 S99710032 Plastic Spacer - 3 Required $7.42
 S98008150 Scroll Box Cover $49.61
 S99080590 Gear Motor $74.52
 S97011500 Gearmotor Bracket $12.49
 S99160225 Screw used to Attach Gear Motor to Bracket - #8-32 x 1/2" - 4 Required $0.68
 S97011443 Gear Motor Cover $13.88
 S99170245 Screw Used to Attach Gear Box Cover & Air Box Cover to Downdraft Housing - #8-18 x 3/8" - 19 Req. $0.68
 S98007642 Back-up Plate for U Bolt $1.21
 S98008159 Leg Support $6.91
 S99150536 Screw used to Attach Leveling Leg to Downdraft Housing - 1/4" - 20 x 5/16" - 5 Required $0.68
 S99250927 Washer for Leveling Leg Screw - 1/4" $0.68
1S99111236 Finger Touch Button Cover - White 1" X 1" Square $4.23
2S99111235 Finger Touch Button Cover - Black (Replaces Grey) 1" X 1" Square $4.23
3S99111230 Finger Touch Button Cover - Biscuit - 1" X 1" Square $4.23
4S97009787 Aluminum Filter Set $17.59
5S99080362 Motor with Capacitor $211.56
6S97011311 Complete Blower Assembly $383.80
7S99100484 Motor Isolator (3 Required) $4.21
8S99271000 Capacitor $21.96
9S99020247 Blower Wheel $45.45
10S97011238 Switch Assembly, Up/Down $26.51
11S97010714 Speed Control $47.79
12S99360165 Knob for Speed Control $3.22
13S97011927 Speed Control with Up/Down Switch $63.40
14S97009972 Lower Micro Switch Assembly $27.00
15S99080295 Gear Motor $92.00
16S99380633 U Bolt $2.86
17S99260437 Nut for U Bolt - 2 Required $0.68
18S93470012 Roller $4.05
19S97010993 Cord $24.14
20S99110850 Slide Strip $6.91
21S97011323 Top, Stainless $55.37
22S97011450 Top, Black $67.36
23S97011448 Top, White $90.32
24S99110881 Installation Template $2.70
25S97011305 Parts Bag $17.89
