Broan 162 One-Bulb Heater with 70CFM Fan and Heat Light, 3.5 Sones,250 Watt Infrared Bulb (Bulb Sold Separately)

Listed below are the parts available for this model.

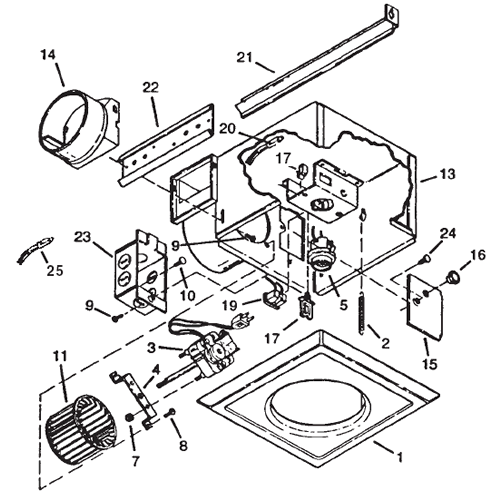

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 162 One-Bulb Heater with 70CFM Fan and Heat Light, 3.5 Sones,250 Watt Infrared Bulb (Bulb Sold Separately)
Broan 162 One-Bulb Heater with 70CFM Fan and Heat Light, 3.5 Sones,250 Watt Infrared Bulb (Bulb Sold Separately) breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
not shown162 COMPLETE New 162, May not fit into old housing $58.43
not shownPAR38 175Watt Infrared Heat Bulb with Extra Thick Glass $17.89
Not ShownBR40 250 Watt Infrared Red Heat Bulb $18.90
 97005906 Blower Assembly CW - 162-A,B (Includes Key Nos. 3,4,7,& 11) $55.69
 97006222 Blower Assembly CCW - 162-C,D (Includes Key Nos. 3,4,7,& 11) $61.11
 97009796 Blower Assembly CW - 162-E,G,J,K ,L (Includes Key Nos. 3,4,7,& 11) $63.00
197010319 Grille with 2 sets of Springs, fits all revisions $19.21
299140127A Grille Spring - 162-A,B,C,D $0.50
206170-00C Grille Spring - 162-E,G,J,K,L $0.50
399080145 Motor CW - 162-B $32.40
399080159 Motor CCW - 162-C,D $31.91
397010254 Motor CW - 162-G,J,K,L $30.04
498003814 Motor Mounting Bracket 162-A,B,C,D $1.03
498007352A Motor Mounting Bracket - 162-E, G, J ,K,L Units, $1.54
599270483B Light Socket - 162-A,B,C,D $4.60
599770034A Light Socket - 162-E, G, J,K,L $4.40
1199020140 Blower Wheel (White) - 162-B $4.72
1199020144 Blower Wheel (Black) - 162-C,D $7.07
1197009759 Blower Wheel (Black) - 162-E $8.78
1197010255 Blower Wheel (Black) - 162-G,J,K,L $8.78
1199020124 Blower Wheel (White) - 162-A*
Discontinued, no longer available. Please call for possible alternatives.

1497003932B 4" Damper/Duct Connector 162-A,B,C,D $2.72
1497009595A 4'? Damper/Duct Connector 162-E, G, J, K,L $9.00
1598010583 Outlet Box Cover 162-E,G,J,K,L (replaced by 98010583) $0.88
1999271323A Receptacle - 162-E,G,J,K,L $1.40
2099270832 Thermostat For Motor 162-E,G,J,K,L $9.11
2198003036 Mounting Bracket (4 req.) $1.03
2298007763 Slide Bracket Channel - 2 Required $1.87
2325064-00C Outlet Box - 162-E,G,J,K,L $7.12
25A99271191 Thermostat For Lamps 162-E,G,J,K,L $3.62
