Broan 110rdf Bath Ventilator

Listed below are the parts available for this model.

Use the parts explosion image to locate the associated part key number. When you hold your mouse over the parts explosion picture, it should zoom it for a closer look. Once you have found the parts that you need, select the matching part key from the list below. Then add the desired item to your shopping cart by clicking "Add to Cart."
Broan 110rdf Bath Ventilator

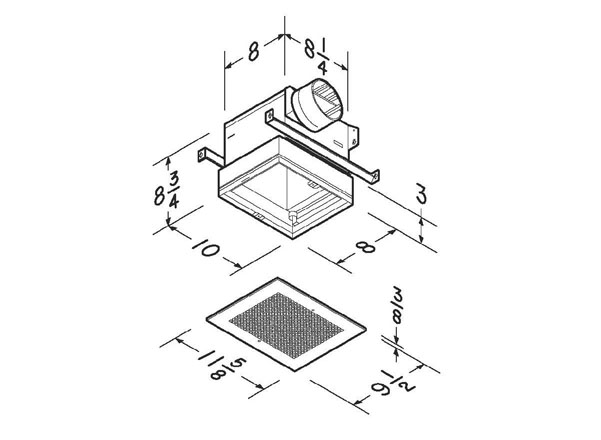

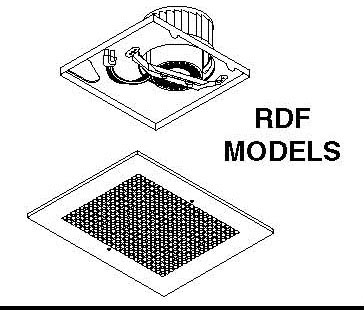

Broan 110rdf Bath Ventilator breakout large
Part KeyPart NumberDescriptionUnit PriceDesired Quantity
-98009908 Metal Grille 9-1/2" X 11-5/8 $22.59
-99150573 Grille Screw - 2 - Required $0.54
-93260454 Sheet Metal Nut - That Grille Screws - Thread Into - 2 Required* $0.68
-97015157 Fan Assy. - Mtr., Wheel and Mtr. Bracket $61.29
-99080517 Motor $50.18
-99260425 Motor Nuts - 2 Required $0.68
-99020276 Blower Wheel $2.84
-97014926 Motor Bracket $5.22
-99270982 Receptacle $1.87
-99150471 Ground Screw $0.68
-98008868 Electrical Knock Out $2.05
-99170245 Screw For Attaching Electrical K.O $0.68
-97015170 O.B. Cvr./Panel W/ Female Receptacle $7.43
-97011831 Mounting Slide Brackets & Channels $13.27
-97015727 4" Metal Damper/Duct Connecto* $17.14
